IEC 60598-1 IPX1/2/3/4 Waterproof Degree Water Ingress Protection Test Chamber
Products Description

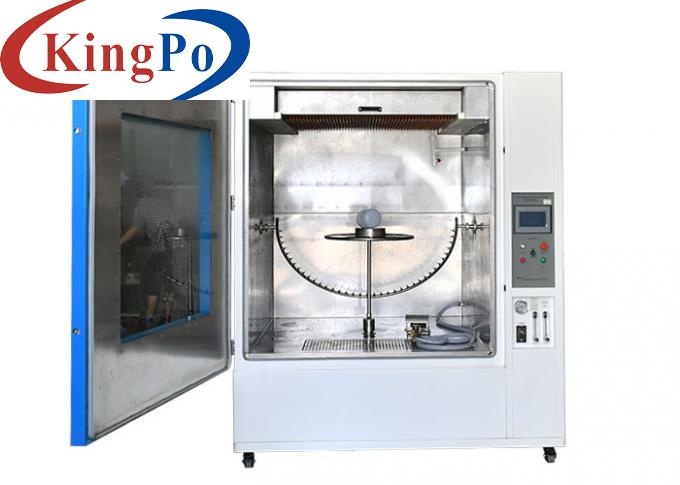

IEC 60598-1 IPX1/2/3/4 Waterproof Degree Water Ingress Protection Test Chamber
Product information:
Standard: IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3and IPX4
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”
Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 & IPX2 and water spraying and splashing at degree IPX3 & IPX4.
Technical parameters:
Inner size: WDH=900×900mm×1050mm
Outer size: WDH=1350×1150mm×1750mm
Drip Speed
(Water Flow)
IPX3:over an arc of 60° either side of the center point (120°)
IPX4:over the whole 180° of the semicircle
Hole spacing: 50mm
IPX3:4s /cycle(2×120°);
IPX4:12s /cycle(2×350°);
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.
IPX1 & IPX2
Chamber Size
Drip Area
WD=600×600mm, other sizes can be customized
Drip Height
200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen
1+0.50mm/min or 3+0.50mm/min adjustable
Needle Pinhole Aperture
Φ0.4mm
Drip Hole Spacing
20mmx20mm
Drip Box Position
Located at the top of the inner chamber, fixed
IPX3 & IPX4
Oscillating Tube
R400mm, R200mm is optional, made of stainless steel
Needle Pinhole Aperture
Φ0.4mm
Spray Holes Distribution
IPX3/4 Switching
Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating Angle
IPX3:120°(±60°)； IPX4:350°(±175°)
Oscillating Speed
Oscillating Tube Position
Located in the middle of the inner chamber, the left and right ends are fixed on the side wall of the inner chamber
General
Waterproof Turntable
Diameter:Φ400mm,rotation speed: 1-5r/min, with 15° sample support block,and lifting frame 400-750mm adjustable, bearing capacity:≤50kgs
Control & Operation
PLC and touch screen intelligent control system
Test Duration
0-99.9min, can be preset
Chamber Material
Inner chamber is made of SUS304 stainless steel
Water Circulation System
The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety Protection
Phase sequence protection, leakage protection, water shortage protection, abnormal protection
