IEC 60598-1 IPX5 IPX6 Hose Nozzle For Protection Against Water Jet Ф6.3mm Ф12.5mm
Products Description
IEC 60598-1 IPX5 IPX6 Hose Nozzle For Protection Against Water Jet Ф6.3mm Ф12.5mm
Product Overview For IPX5 IPX6 Hose Nozzle For Protection Against Water Jet:
The IPX5 and IPX6 jet nozzles are used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5 and IPX6.

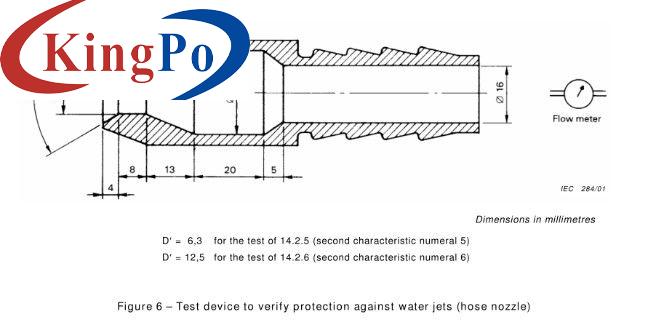

Structure For IPX5 IPX6 Hose Nozzle For Protection Against Water Jet:
This device is manufactured according to IEC60598-1:2014, IEC60529:2013.
Place of use: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860mbar-1060mbar), the ground should be flat, with lighting, water and drainage function is good
Technical Parameters For IPX5 IPX6 Hose Nozzle For Protection Against Water Jet:
Use water source: clean water or tap water without impurities, and distribute water to clean the filter
IP Grade
IPX5
IPX6
Nozzle Internal Diameter
Ф6.3mm
Ф12.5mm
Water Flow per Standard requirements
12.5±0.625L/min
100±5 L/min
Distance from Nozzle to Enclosure Surface
2.5~3m
Core of the Substantial Stream
Circle of approximately 40 mm diameter at 2.5 m distance from nozzle
Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration
Likely 1min/m² (minimum: 3 min)
Pressure Gauge
Measuring range: 0~0.25MPa
Digital flow meter
8L/min ~120L/min
