IEC 60598-1 Thermostat Life Test Bench Device For Temperature Measure PLC Control
Products Description

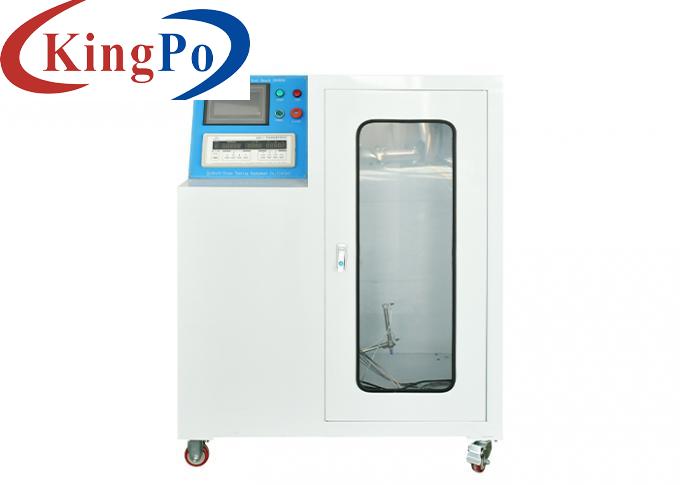

IEC 60598-1 Thermostat Life Test Bench Device For Temperature Measure PLC Control
Applied Standards For Thermostat Life Test Bench Device:
The tester is designed and manufactured according to the standard requirements of Conform to IEC 60598-1 clause 12.7.2.
Test Overview For Thermostat Life Test Bench Device:
The working principle is to heat the winding by automatically adjusting the current. When reaching the upper limit value of the temperature controller, the temperature controller should be disconnected and manually reset. The temperature controller should be reset manually and repeat the test for 6 times. The automatic reset temperature controller should be continuously powered on until the temperature reaches the temperature.
Main Specifications For Thermostat Life Test Bench Device:
1 Control and operation: PLC control, 7’’ touch screen operation;
2 Test station: one
3 Voltage regulation: Automatic, the winding current can be increased slowly and stably;
4 Temperature measuring channel:4 channels
5 Test cycles:0-999999, can be preset;
6 Interval time: 0-99h59min59s, can be preset;
7 Reset cylinder:1 pc, for manual reset of thermostat;
8 Power input:AC220V 50Hz
