IEC 60598-1 Threaded Connectors Torque Screwdriver 1.5-30N.M For Screwed Glands
Products Description
IEC 60598-1 Threaded Connectors Torque Screwdriver 1.5-30N.M For Screwed Glands
Product overview:
The threaded fitting tester according to IEC 60598-1:2014 4.12.5 is used to assess the fixing reliability of objects secured with metal and plastic threaded fittings, where neither the fitting nor its connecting parts can be damaged by applying a certain torque to the fitting according to the standard.
Standards & Clauses:
IEC 60598-1 “Luminaries-Part1: General requirements and tests” clause 4.12.5
Application:
Test the mechanical strength of the screwed glands
Samples and Restrictions:
Glands of screw thread ≦ M33
Test Principle:

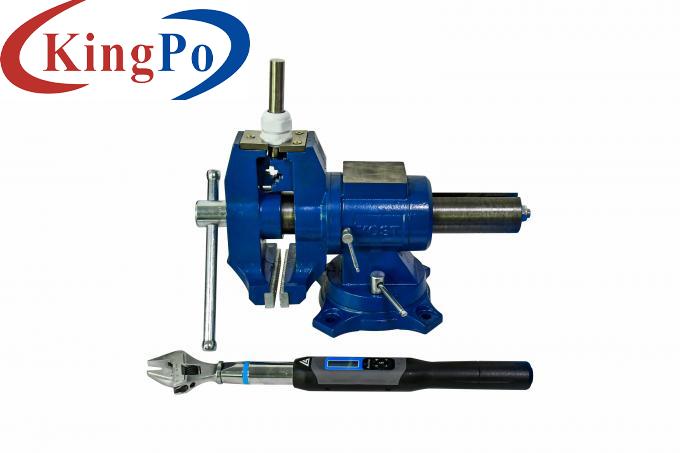

The threaded gland is fitted with a cylindrical metal rod, which is held in place at one end, and then a spanner is used to apply the test torque at the other end.
Structure:
Manual testing, simple and convenient
Technical Parameters:
Applied torque range
1.5-30N.m
Way of applying torque
Torque wrench
Gland fixing method
Vise or adjustable wrench
Cylindrical metal rod
One of each Ф5mm, Ф7mm, Ф9 mm, Ф10mm, Ф12 mm, Ф14mm, Ф16 mm, Ф18 mm, Ф20 mm, Ф22 mm, Ф25 mm, Ф30 mm, Ф32 mm, Ф40mm
