IEC 60601-1 Multi-position Type Motor-driven Lifting Handle Strength Test Device
Products Description

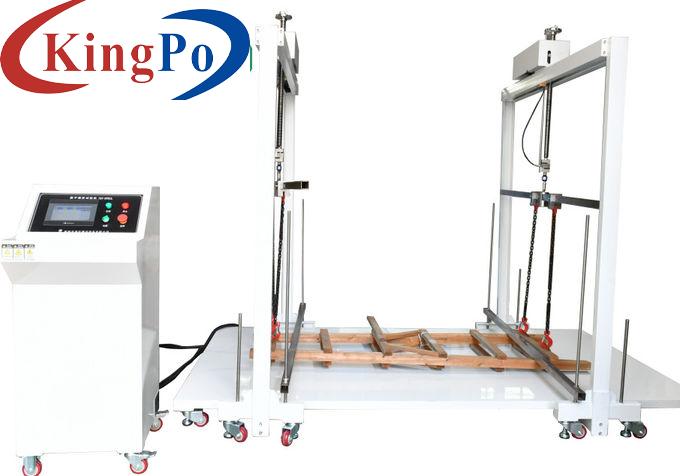

IEC 60601-1 Multi-position Type Motor-driven Lifting Handle Strength Test Device
Product Information:
1. Standard: conform to IEC62368-1:2018 clause 8.8, IEC60601-1:2012.
2. Samples and restrictions: audio-visual, information technology and communication technology equipment and portable medical electrical equipment with carrying handles or handles.
3. Application: used to test the mechanical strength of the handles of audio, video, information technology and communication technology equipment with carrying handles or handles, and portable medical electrical equipment.
4. Test principle: the PLC controls the force application device to apply a force equal to 1 to 4 times the weight of the equipment on the handle, and apply force evenly on a 75mm (7cm for ME equipment) wide range at the center of the handle. Do not pull violently, and start from scratch within 5s-10s. Gradually increase to the test value and maintain for 1 minute.
Technical Parameters:
Equipment dimensions
About: 1600×1200×2000 (mm) W×D×H
Equipment weight
180kg
Usage environment
Power supply: AC220V50Hz, working temperature 5-35℃, humidity 30%-90%;
Station
Single station
Control and operation
LCD screen operation (optional PLC control, touch screen operation)
Drive mode
Motor-driven
Force range
0-200kg, can be set, real-time detection and display of force sensor
Force application speed
0-200mm/s
Constant force time
0-9999s can be set
Test Range
Single-position type and multi-position type
Frame
Aluminum profile frame, suitable for fixing different specimens
Safety protection
Overload protection, leakage protection
