IEC 60601-2-52 Tumbling Barrel Drop Test Machine For Test Performance Of Medical Beds
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 Sets Per Month |
Products Description

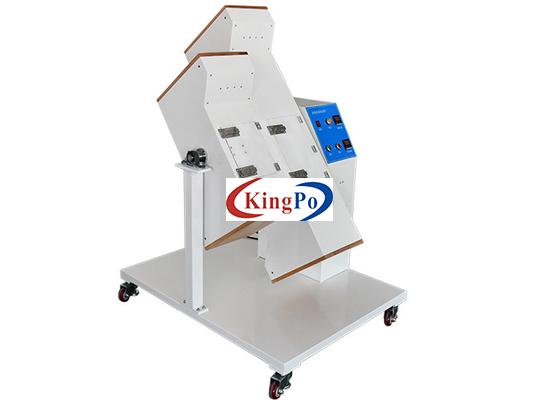

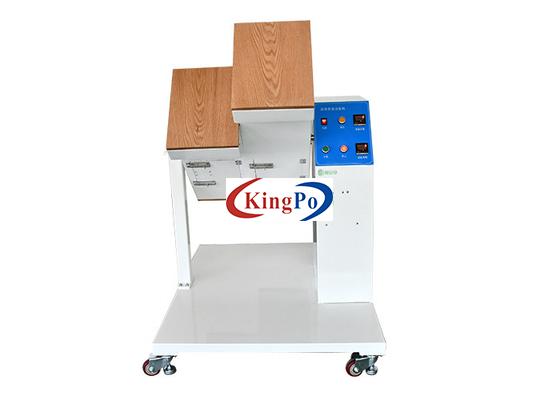

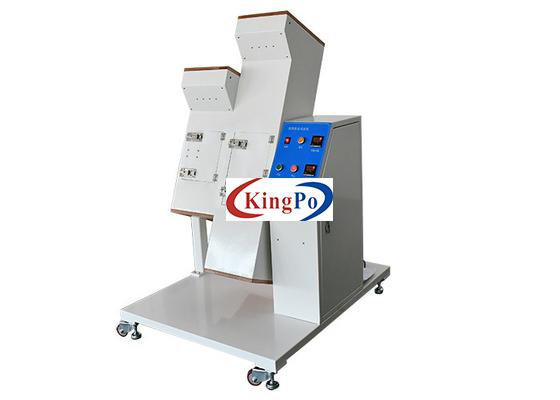

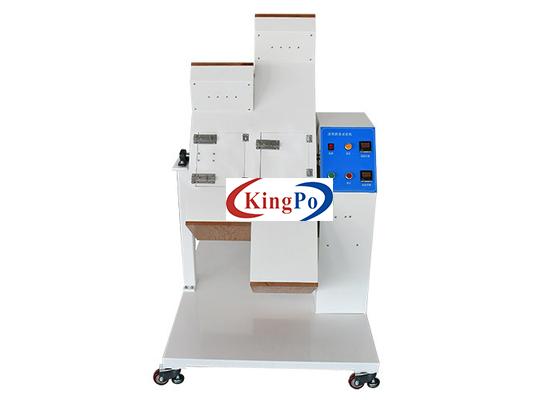

IEC 60601-2-52 Tumbling Barrel Drop Test Machine For Test Performance Of Medical Beds
Product Overview:
1. Standard: conform to YY9706.252-2021 clause 201.15.3.4.1, IEC60601-2-52:2009, IEC60068-2-31:2008.
2. Samples and restrictions: plugs and sockets from various countries, plug-type ballasts/transformers and socket-mounted luminaires, non-rewirable connectors, hand-held ME equipment.
3. Application: suitable for drop resistance performance verification of plugs and sockets, non-rewirable connectors, plug-type ballasts/transformers and lamps installed in power sockets, and handheld ME equipment.
4. Test principle: the motor is used to drive the drum to rotate, and the sample is repeatedly dropped to the specified surface at a specified height.
5. Equipment structure and characteristics: the electrical control cabinet has a roller structure, which can preset the number of tests and automatically shut down when the number of tests is reached.
Technical Parameters:
Usage environment
AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%;
Equipment dimensions
800×800×1100(mm)W×D×H
Equipment weight
100kg
Station
Double drum
Electrical control method
Button control
Drive mode
Motor-driven
Roller material
The sides are 1.5mm high-quality steel plates, the upper and lower parts are 3mm steel plates padded on 10-19mm wooden boards, and the inclined sliding surface is made of plastic laminated plates with triangular rubber pads.
Spinning speed
5rpm
Specimen drop rate
10 times/minute
Test frequency
0~9999 times can be set
Drop height
500mm and 1000mm
Mainly for samples
Plugs, sockets and similar electrical accessories, handheld ME equipment controllers
