IEC 60884-1 2022 Test Set Up For Plugs And Sockets Temperature Rise Test
Products Description
IEC 60884-1: 2022 Test Set Up For Plugs And Sockets Temperature Rise Test
Product Information For Test Set Up:
The device is made and manufactured according to the related standard requirement of temperature rising, such as IEC 60884-1:2022 clause 19, IEC 60669-1:2017 Clause 17, VDE0620 etc. It is applicable to the temperature rising of electronic accessories in working position.
Technical parameters For Test Set Up:
Applications For Test Set Up:

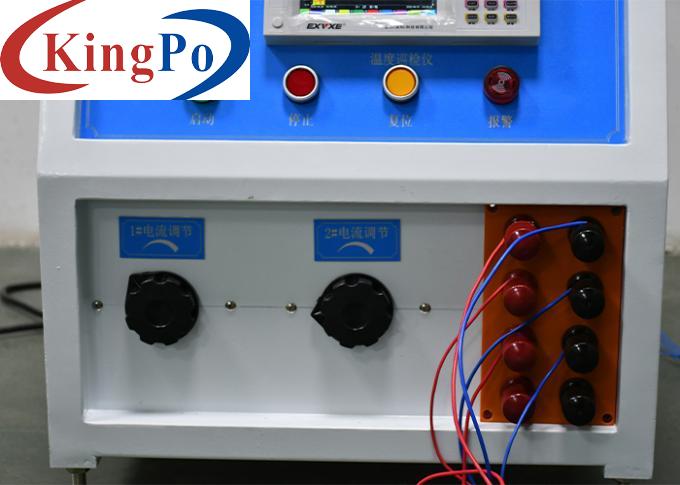

External type, with built-in temperature measuring meter, the thermocouple wire is directly connected to the sample
Equipment dimensions: about: 600 × 600 × 600 (mm) W × D × H, equipment weight: 100kg
Model
SN2119
Test stations
2 stations are independently adjustable, each group has two outputs in series
Test current
0-60A
Test voltage
<12V
Digital display current value
Accuracy: ±0.5%FC±2d
Timing
Digital display, range 0～99.99s～99.99m～99.99h can be selected, alarm when time arrives
Temperature measurement
Adopt temperature inspection instrument, 8 channels, LCD digital display, with temperature-time curve
Power supply
AC220V±10%/50-60Hz
Standard
IEC 60884-1
Test samples
Plug and socket-outlets
Samples
Household appliance plugs and sockets
Test purpose
Test the temperature rise of electrical accessories under working conditions
Test principle
Use voltage and current to simulate the normal use of the workpiece, and measure the temperature rise after a certain period of time
Equipment structure and characteristics
Use environmental
Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%.
