IEC 60884-1 2J 5J 10J 20J High Energy Pendulum Impact Test Apparatus For Impact Resistance Test

Equipment information:

The high energy pendulum impact test apparatus is designed and manufactured according to the requirements of IEC60068-2-75, IEC60884-1:2013, IEC62262:2002 clause 6, etc.

It is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.

Test Eha: Pendulum Hammer, the striking element is free released at a certain height through a 1 m pendulum tube, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.

Structure:

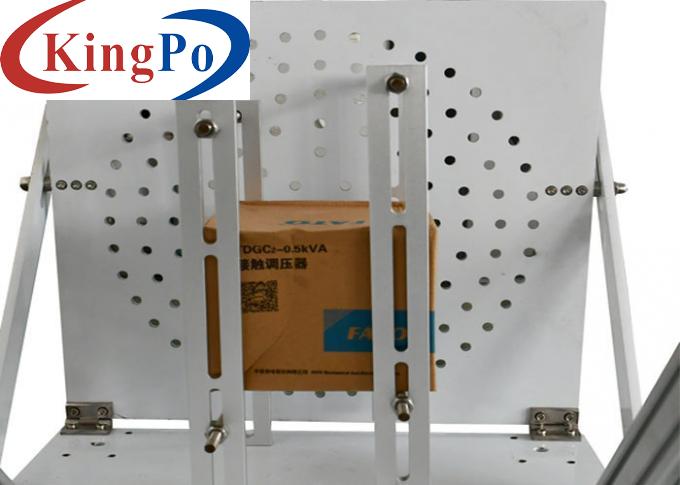

The low energy pendulum impact test device is mount ed to the wall, the sample mounting bracket is adjustable up, down, left and right, and the angle can be adjusted by pivot, thereby achieving impacts on different positions on the front side and impacts on side of the sample.

The high-energy pendulum impact test device adopts a trolley structure, can move around left and right, the height of the upper and lower impact points is adjustable through the screw guide, the impact angle is adjustable from 0 to 90°.

Technical Parameters:

Table 1 Striking element characteristics



Energy / J	≤1 ±10%	2 ±5%	5 ±5%	10 ±5%	20 ±5%	50 ±5%
Equivalent Mass ±2%kg	0.25(0.2)	0.5	1.7	5	5	10
Material	Nylon	Steel
R/mm	10	25	25	50	50	50
D/mm	18.5(20)	35	60	80	100	125
f/mm	6.2(10)	7	10	20	20	25
r/mm	-	-	6	-	10	17
l/mm	Adjusted according to the equivalent mass, see Appendix A



Table 2 Height of Fall



Energy /J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent Mass /kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0.25	0.5	1.7	5	5	10
Height of Fall ±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.



Table 3 Relationship of IK code and corresponding energy



IK Code	IK00	IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
Energy / J	a	0.14	0.2	0.35	0.5	0.7	1	2	5	10	20
Note 1. If higher impact energy is required, the recommended value is 50J. Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a. Unprotected according to this standard
