IEC 60884-1 Clause 14 Plug Torque Force Test Device 0.25 & 0.4 N.M
Products Description

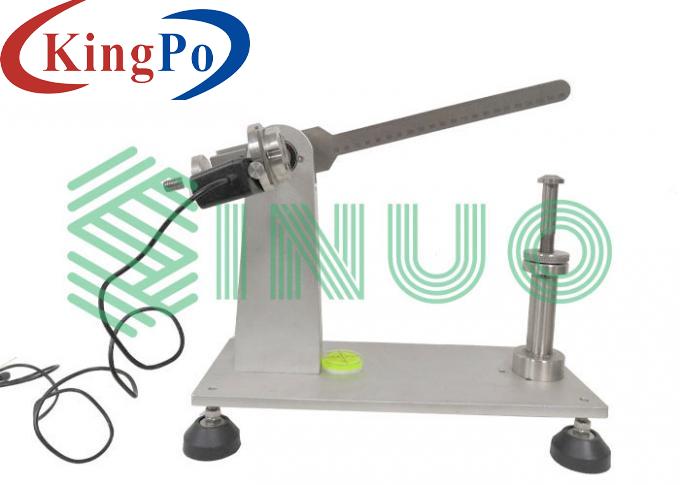

IEC 60884-1 Clause 14 Plug Torque Force Test Device 0.25 & 0.4 N.m
Product information:
This device can measure the torque of the plug inserted into the socket according to the standard.
Standads & Clauses:
IEC60884-1:2006clause 14.23.2
IEC60335-1:2004clause 22.3
IEC60065:2005clause 15.4.1 and figure 11
Test process:
Insert the device into a fixed socket conforming to this standard. The socket is rotated 8 mm behind the socket joint face by a horizontal axis through the axis of the live socket contact and parallel to the joint face.
Technical Parameters:
The purpose is to prevent the device that is intended to be inserted into a fixed output socket and equipped with a pin to not subject the output socket to excessive stress.
Mainly detect fixed output sockets and devices equipped with pins
The additional torque that must be applied to the socket to maintain the joint in the vertical plane shall not exceed 0.25 Nm.
Test Station
Single
Specimen Eccentricity
Distance from the contact surface and the Axis of the surface:8mm
Balancing Arm
L:50-260mm
Weight
2.5N, can achieve 0.25Nm to 0.4Nm torque force
Torque Calculation Method
G×L(such as 0.25N.m,use 2.5N weights and 100 mm arm)
Configure
One of each universal socket (suit for GB and BS plug), UL socket, European socket
