IEC 60884-1 Clause 16.1 Natural Convection Oven Circulation Heating Cabinet
Products Description

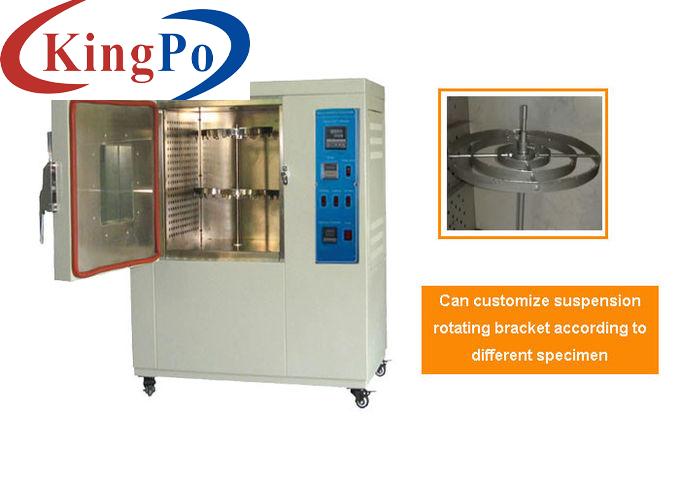

Natural Convection Oven Natural Circulation Air Ageing Heating Cabinet
Product Information:
This device is required by IEC 60884-1:2013 clause 16.1, IEC 60669-1 clause 15.1, IEC 60065:2014 clause 12.1.6, etc. It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on
Features:
1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.
2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.
3. P.I.D. control system, double over-temperature protection, safe and reliable.
4. The temperature setting is simple, and the operation is more convenient.
Attachment tray, can be adjusted freely.
Technical Parameters:
Applied standard
IEC 60884-1
Applied clause
16.1
Temperature range
Inner chamber size
L 50cm * W 60cm* H 80cm
Temperature control
PID digital setting
Test shelves
Two trays
Timer
0~9999H/ M / S
Temperature fluctuation
±1 °C
Distribution error
±2.5 °C
Air circulation
Natural convection
Natural ventilation
8~20 times/hour
Test piece rotation speed
5~10r.p.m
Observation window
Square window
Material
Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint
Machine weight
About 120 kg
Power supply
AC 220V±10%, 50hz
Room temperature RT ~ 300 ° C
Temperature resolution
0.1 ° C
Equipment dimensions
1060mm×700mm×1445mm
