IEC 60884-1 Wire Connection Pull Test Device Power Socket Tester For Household
Products Description

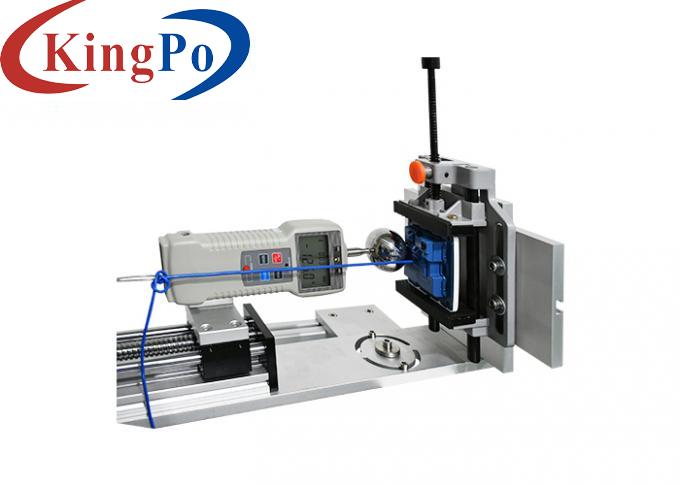

IEC 60884-1 Wire Connection Pull Test Device Power Socket Tester For Household
Standard: IEC60884-1:2006 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 13.4 and figure46
Sample: Household sockets without screw terminals
Test purpose: Used to detect the socket structure of the screwless terminal During or after the socket is installed on the installation box or wall, the connection and/or disconnection device of the screwless terminal cannot be triggered by the wire, verifying the safety performance of its structure.
Test principle: Use push rod connection test tool 1 (Ф50 steel ball) to apply 120N thrust to the connection and/or disconnection device. After the force value is reached, the equipment automatically controls the motor to drive the cam mechanism to drive the weight tray to release the weight, make it apply a pulling force of 30N to the wire, and automatically reset after reaching the test time of 1min.
1. The equipment adopts a hand-operated slide structure to apply a 120N thrust to the connection and/or disconnection device of the sample, and uses a motor and an eccentric mechanism to apply a 30N pull to the wire
2. When the test force value is reached, the equipment automatically drives the motor to perform the tensile test
3. When the tensile test time is reached, the weight tray of the equipment is automatically reset, and the severity of the test will not be increased due to a longer time
4. Adopt the structure of double-slider guide rails, apply push force to the sample and pull force to the wire respectively, the positions are staggered, and the test tool 1 will not touch the wire
Multifunctional open flat pliers, adjustable up and down, left and right
Product Information For Wire Connection Pull Test Device:
Equipment Characteristics For Wire Connection Pull Test Device:
Technical Parameters For Wire Connection Pull Test Device:
Test station
One station
Test items
Wire connection tension test (including 120N push force and 30N pull force)
Test process
Drive the force-applying steel ball along the sliding table to apply thrust to the sample by shaking the hand wheel. When the digital display shows that the force value reaches 120N, the equipment automatically drives the motor and the cam structure to separate the weight tray from the 30N tension weight. Gently apply tension to the wire, and the weight tray will automatically reset after 1 minute, stop applying tension, and manually shake the handwheel in the opposite direction, the steel ball will be separated from the sample, and the test is over
Sample clamping method
Force steel ball
SФ50+0.05 0mm
Thrust exert method
Manually, drive the force-applying steel ball along the slide table to apply thrust to the sample by shaking the hand wheel, the digital display will display the force value, and automatically apply the pulling force when the force value is reached
Thrust sensor
0-200N, resolution 0.1N
Pull weight
30N
Tension exert method
Motor-driven cam releases weight tray from tension weights
Tension exert time
0-9999S, set the digital display chronograph, the device will automatically start timing and reset
Arrangement of force exert
The structure of double sliding table ensures that the test sample 1 does not touch the wire when the force is applied
Result judgment
Whether the wire comes out of the screwless terminal when the pulling force is applied, if it comes out, it is unqualified
Equipment size and weight
About: 800×800×1100 (mm) W×D×H, equipment weight about: 100kg
