IEC 60950-1 Intelligent Crush Testing Equipment For Compressive Endurance Test
Products Description
IEC 60950-1 Intelligent Crush Testing Equipment For Compressive Endurance Test
Product Overview For Intelligent Crush Testing Equipment:
This machine is the most direct test instrument for verifying the compressive strength of cartons or other packaging containers. It is used to determine the compressive strength of cartons, and can be used for steady pressure tests and crush tests. The results of the tests can be used as an important reference for the height of the finished product containers at the factory. The important basis for designing the packaging box. It can also be used to process testing as per IEC 60950-1:2013 clause 4.1, clause 4.2.10 and IEC60065:2014 clause 12.7.3.6, etc.
Principle For Intelligent Crush Testing Equipment:
The machine uses a motor drive screw to move the upper platen downwards, thereby compressing the sample; as a result, the force sensor is used in conjunction with the display to automatically display the strength value.
Technical Parameters For Intelligent Crush Testing Equipment:
125mm * 200mm as per IEC 60950 clause 4.1
102mm * 250mm as per IEC 60065 clause 12.7.3.6
Environmental Requirements For Intelligent Crush Testing Equipment:
1 Room temperature: 20°C±10°C
2 Power: AC120V ± 22V, 6HZ, maximum current 1A, power supply should be reliably grounded.
3 The working environment is clean, there is no strong magnetic field and vibration source, and the worktable is flat and stable.
4 Relative Humidity: <85%
Capacity
0~1T
Accuracy level
Level 1
Control method
Controlled by microcomputer

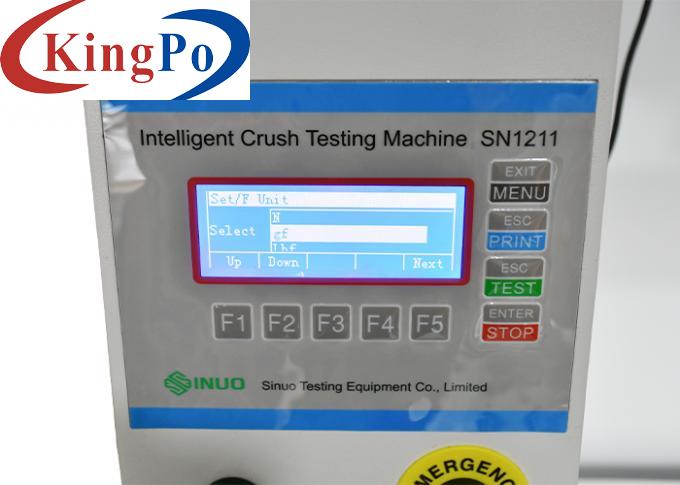

Display method
Electronic LCD display
Power unit
kgf, gf, N, kN, lbf
Stress unit
Pa, kPa, MPa, kgf/cm2, lbf/in2
Displacement unit
mm, cm, in
Power resolution
1/100000
Display resolution
0.02N
Lifting stroke
1200 mm
Press plate size
Bottom platen size
600mm * 600mm * 60mm
Software function
English and Chinese are interchangeable
Shutdown mode
Overload shutdown, emergency stop button, automatic shutdown of test piece destruction, automatic shutdown of upper and lower limit settings
Safety equipment
Overload protection, limit element protection device
Machine power
AC variable frequency motor drive controller
Lifting rail
High precision ball screw
Power supply
AC120V/60Hz
Machine weight
Around 350KG
Performance characteristics
The percentage break value can be set, the machine will stop automatically, and the speeds can be preset when enter the menu. 40 results are available, the average of all test results and single results can be viewed.
