IEC 60950 100N Stainless Steel Ф30 mm Diameter Thrust Rod with Nylon Handle
Products Description
IEC 60950 250N or 100N Force Stainless Steel Ф30 mm Diameter Thrust Rod
Product Overview:
The thrust rod conforms to IEC 60950: 2013 clause 4.2.4, IEC 60065:2005 clause 9.1.7 c), IEC 60884.1-2002 and etc.
It is used to process steady force test to external enclosures.
Technical Parameters:

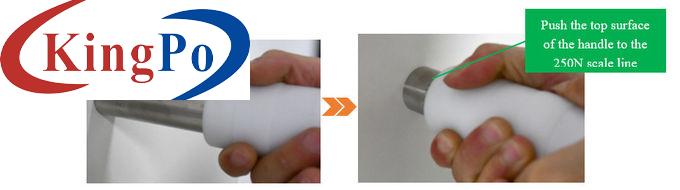

Operation steps:
Please refer to the relevant standards.
Take IEC60950: 2013 clause 4.2.4 as an example:
External ENCLOSURES are subjected to a steady force of 250 N ± 5 N for a period of 5s, applied in turn to the top, bottom and sides of the ENCLOSURE fitted to the equipment, by means of a suitable test tool providing contact over a circular plane surface 30 mm in diameter. However, this test is not applied to the bottom of an ENCLOSURE of equipment having a mass of more than 18 kg.
Diameter of circular plane surface of force applied
Ф30 mm
Applied steady force
250 N ± 5 N or 100 N ± 5 N
Rod material
Stainless steel
Handle material
Nylon
