IEC 60998-2-2 Terminal Mechanical Stress Test Apparatus
Products Description

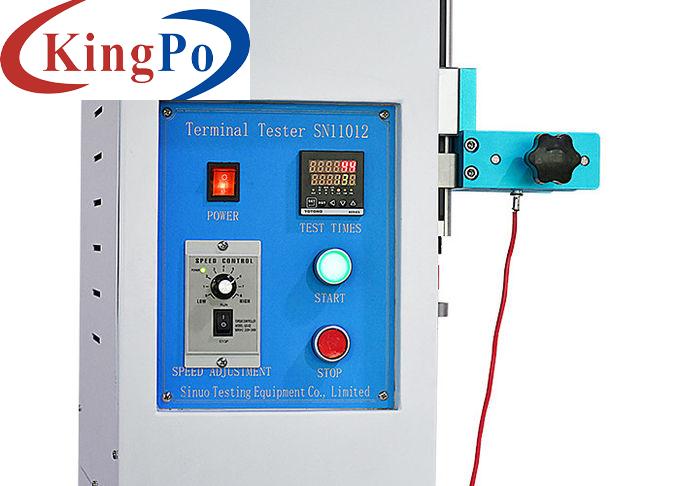

IEC 60998-2-2 Terminal Mechanical Stress Test Apparatus
Product Information:
The Terminal Mechanical Stress Test Apparatus is designed and manufactured according to the standard requirements of IEC 60998-2-2, IEC 60084 figure 1, IEC884 figure 11, and etc.
The test apparatus is used to examine whether screw-type terminals and screwless terminals can withstand the mechanical stress that occurs during normal use. It is mainly used to judge whether the design and structure of the screw-clamping terminal have reached the requirement of not excessively damaging the wire when the wire is clamped.
Technical Parameters:
6.5mm,9.5mm,13mm,14.5mm,15.9mm,19.1mm,22.2mm,25.4mm,
28.6mm,31.8mm,38.1mm,44.5mm
Standard
IEC 60998-2-2
Voltage
220V(AC)50Hz
Test station
Single station
Speed of work
10±2 revolutions/min
Rotation diameter
75mm
Test times
1-999999 times
Load weight
0.4-70.3Kg
Height distance
260-660mm, adjustable
Wire sleeve diameter
