IEC 61032 Figure 2 Jointed Standard Test Probe For Equipment
Products Description
IEC 61032 Figure 2 Jointed Standard Test Probe For Equipment
Product information:
The test finger probe B is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against accessing with a finger. It complies with the standard IEC 61032 figure 2, it’s a special instrument for household and similar electrical appliances’ enclosure against electric shock test, an essential lab tool for the quality inspection departments and research institutions to detect relevant household appliances product safety performance.
Techincal Parameters:
SN2210-2A
(Optional)
SN2210-2B
(Optional)
SN2210-2T
(Optional)

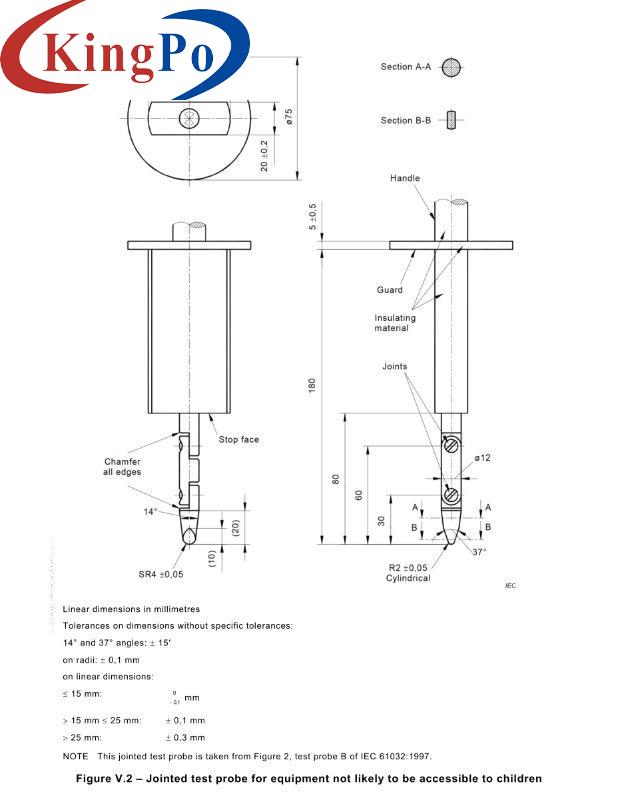

IEC 62368-1
figure V.2
Details:
1. The dimensions are made according to IEC 61032 figure 2.
2. The finger probe material: stainless steel.
3. The baffle and handle material: nylon.
4. The end of the handle with a M6 thread hole, which is used for connecting with a force gauge to achieve required force value.
5. It is equipped with a cable and an alligator clip, which is used for connecting with anti-shock probe experiment device to verify whether the appliance’s enclosure against electric shock.
1. Please refer to relative standard requirements, take IEC 60335-1 clause 8.1.1 as an example: Test probe B of IEC 61032 is applied with a force not exceeding 1N, the appliance being in every possible position except that appliance normally used on the floor and having a mass exceeding 40 kg are not tilted. Through openings, the test probe is applied to any depth that the prone will permit and is rotated or angled before, during and after insertion to any position. If the opening does not allow the entry of the probe, the force on the probe in the straight position is increased to 20 N. If the probe then enters the opening, the test is repeated with the probe in the angled position. It shall not be possible to touch live parts or live parts protected only by lacquer, enamel, ordinary paper, cotton, oxide film, beads, or sealing compound except self-hardening resins, with the probe.
2. If the test requires applying the test probe B with specific force, it needs to work with a force gauge. Please screw the force gauge connector into the M6 thread hole on the end of the handle.
3. For verifying whether LIVE PARTS touched, it requires working with an anti-shock probe experiment device: it is connected to the anti-shock probe experiment device (40V-50V), then operator processes the test according to the relative standard, the buzzer ringing means electric shock prompted.
Parameters /Model
SN2210-2
Applied Standard
IEC60335-1
IEC60335-2-14
IEC60529
Name
Standard test finger
Circular baffle test finger
Large baffle test finger
Standard test finger with force
1
30±0.2
30±0.2
30±0.2
30±0.2
2
60±0.2
60±0.2
60±0.2
60±0.2
3
80±0.2
80±0.2
100±0.2
80±0.2
4
180±0.2
180±0.2
----
180±0.2
5
R2±0.05
R2±0.05
R2±0.05
R2±0.05
6
S4±0.05
S4±0.05
S4±0.05
S4±0.05
7
37o 0 -10’
37o 0 -10’
37o 0 -10’
37o 0 -10’
8
14 o 0 -10’
14 o 0 -10’
14 o 0 -10’
14 o 0 -10’
9
Ф12 0 -0.05
Ф12 0 -0.05
Ф12 0 -0.05
Ф12 0 -0.05
10
Ф50
Ф50
----
Ф50
11
20±0.2
----
----
20±0.2
12
Ф75±0.2
Ф75±0.2
Ф125±0.2
Ф75±0.2
13
5±0.5
5±0.5
----
5±0.5
14
----
----
----
10-30N force
