IEC 61032 Figure 8 Test Probe 12 Ф4mm Hardened Steel Test Pin
Products Description
IEC 61032 Figure 8 Test Probe 12
Product Overview:
This test probe conforms to the standard requirements of IEC 61032 figure 8 test probe 12, etc. This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

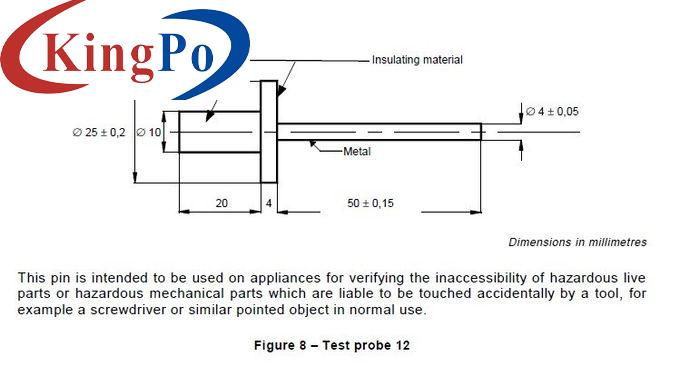

Probe Dimension:
Please refer to the relevant standards for the operation.
Please do not damage the appliance shape (such as scratching, bending, etc.).
Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
Metal pin diameter (mm)
Ф4±0.05
Metal pin length (mm)
50±0.15
Guard diameter (mm)
Ф25±0.2
Guard thickness (mm)
4
Handle diameter (mm)
Ф10
Handle length (mm)
20
Pin material
Hardened steel
Guard and handle material
Nylon
