IEC 61851-1 Insulated Handle IPXXB Standard Test Finger With Alligator Clip
Products Description
IEC 61851-1 Insulated Handle IPXXB Standard Test Finger With Alligator Clip
Product overview:
This is a precision test finger made in accordance with IEC61032 figure 2 test probe B, it is required by IEC 61851-1 clause 8 and 12.4,etc.
Application:
This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.
This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
Technical parameters:
Customizable:

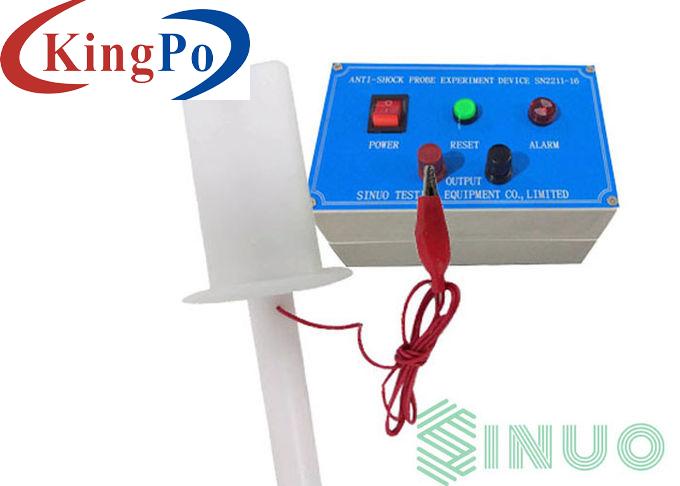

It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle to connect with a pull and push force gauge to achieve specific force.
Model
SN2210-2
Name
Standard test finger
Joint 1
30±0.2 (mm)
Joint 2
60±0.2 (mm)
Finger length
80±0.2 (mm)
Fingertip to baffle
180±0.2 (mm)
Cylindrical
R2±0.05 (mm)
Spherical
S4±0.05 (mm)
Fingertip cutting bevel angle
37o 0 -10’
Fingertip taper
14 o 0 -10’
Test finger diameter
Ф12 0 -0.05 (mm)
A-A Section diameter
Ф50 (mm)
A-A Section width
20±0.2 (mm)
Baffle diameter
Ф75±0.2 (mm)
Baffle thickness
5±0.5 (mm)
