IEC 61851-1 Plugs And Vehicle Connectors Cable Anchorage Pull Force And Torque Test Apparatus
Products Description

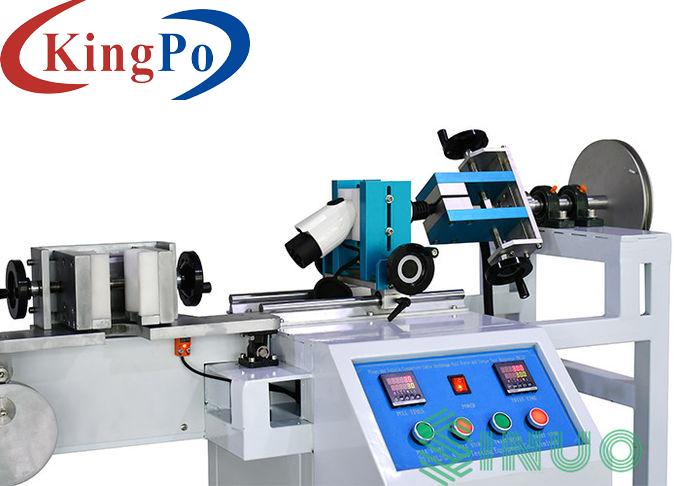

IEC 60309-1 Plugs And Vehicle Connectors Cable Anchorage Pull Force And Torque Test Apparatus
Product information:
This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.
It is designed and manufactured according to IEC 61851-1:2017 clause 11.6, IEC62196-1: 2020 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.
Structure and features
Use weights to apply tension, and weights and torsion arms to achieve torque. The preset number counter and digital display time relay are used to control the number of times of tension and the time of torque test. The equipment will automatically stop when the number of tests or the test time arrives. After the test, the maximum allowable displacement of the flexible cable of the charging gun connector shall not exceed the standard required value.
Test principle
Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.
Technical parameter:
One set of pull force weights
Can achieve 160N, 200N, 240N, 250N,500N, 600N
One set of torque weights
Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m
Operation method
Button operation
Drive mode
Motor and cylinder
Pull force weights
Torque weights
Torque arm
R100mm(Ф200mm)
Pull frequency
1cycle/s
Pull cycles
1-9999 cycles, can be preset, default 100 cycles
Torque applied time
0-99H59M59S, can be preset, default 1min

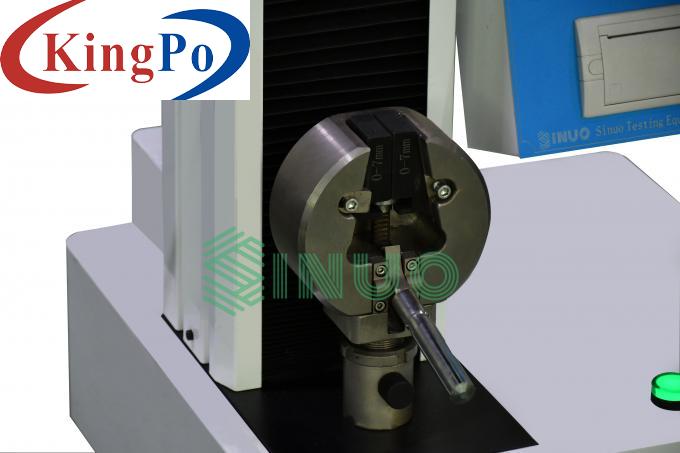

Fixture
One set of universal fixtures
Equipment dimensions & weight
W1300*D800*H1300mm, the whole machine is about 150Kg
Power supply
Single phase AC220V±10%, 50Hz, 10A
