IEC 61855 Omega K Thermocouple Temperature Tester For Handheld Hair Dryers
MOQ:1
DeliveryPeriod:15days
DeliveryPeriod:15days
Products Description
Place of Origin：China
Brand Name：KingPo
Certification：Calibration Certificate (Cost Additional)
Model Number：KP1122
Applied Standard：UL859, IEC 61855
Test Sample：Hand-held Hairdryers
Measuring Plate Size：L140×W134×D14.2mm
Thermocouple Layout：53 Points
Thermocouple Type：Omega K Type, Thread Length 0.25mm
Measuring Plate Material：Epoxy Board, Aluminum Bracket
Minimum Order Quantity：1
Delivery Time：15days
Highlight：NB/T42077 Vehicle Drive Over Testing Apparatus, PLC Vehicle Drive Over Testing Apparatus
Product Description

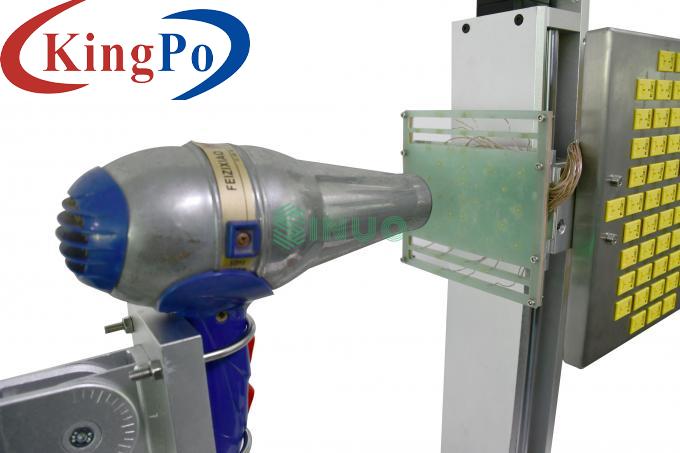

IEC 61855 Omega K Thermocouple Temperature Tester For Handheld Hair Dryers
Product overview:
The temperature measuring device is designed and manufactured in accordance with UL 859 and meets the requirements of Figure 2 and 3 of Article 6 of IEC 61855. , The sample we chose is a hand-held hair dryer.
Working principle:
It uses the temperature inspection instrument to monitor the temperature of the measuring point according to the standard position, and modify it according to the standard requirement of clasue 6.5.2 formula.
Technical Parameters:
| Configuration | The temperature inspection instrument is provided by operator |
| Measuring plate material | Made of epoxy board, aluminum bracket |
| Specimen mounting bracket | Adopts sliding table, the distance from the temperature measuring board can be finely adjusted by the screw |
| Thermocouple | Omega K type, thread length 0.25mm |
| Thermocouple layout | According to the position requirements of standard figure 2, 53 points are arranged, and the holes are filled with epoxy powder |
| Measuring Plate Size | Length * Width* Thickness:140×134×14.2mm, according to Figure 2 |
