IEC 62133-1 Chemical Battery Enclosure Pressure Test System With PLC Control
Products Description
IEC 60335-1 Chemical Battery Enclosure Pressure Test System With PLC Control
Product Overview For Battery Case Pressure Testing System:
Compliance with standards and clauses: IEC 60335-1:2020 - Annex BB-20.1.
Specimens and limitations: Containing monolithic cells using metal ion chemistry.
Test purpose: To measure the stress generated when the housing of a battery-powered device containing a monolithic cell using metal ion. Chemistry is subjected to the battery during a failure and to verify the housing strength of the battery housing.
Test principle: using the booster pump to increase pressure, through the pressure sensor connected to the pipeline real-time monitoring.
Structure For Battery Case Pressure Testing System:
The structure of the device is controlled by a touch screen, which can read out the pressure curve display, increase the gas capacity, test pressure, and test time can be set. The pneumatic booster pump and its pressure control device are used for stable performance, convenient operation and beautiful appearance. It integrates the advantages of many similar products at home and abroad, and is the first choice for major domestic measurement institutions and laboratories.
Technical Parameters For Battery Case Pressure Testing System:

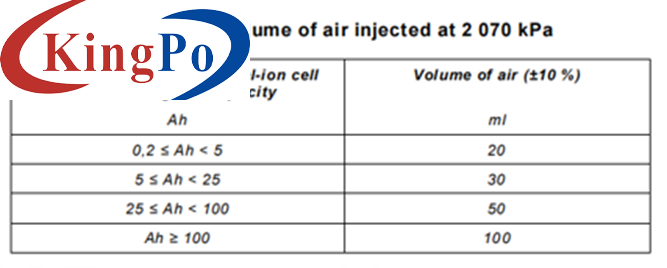

10-100ml is adjustable and can be realized (20, 30, 50, 100ml)
Test station
1 station
Control method
PLC control and touch screen operation
Drive mode
Booster pump driver
Test medium
Gas
Test pressure
0.01-2.5mpa, pressure sensor monitoring
Gas capacity
Test time
0-999999s can be set
Sealing joint
One set as standard, orifice Φ2.85±0.05mm
Test process
Manual loading and unloading test, automatic detection process
Use environment
Atmospheric pressure 80~106kpa, ambient temperature 5~40°C, relative humidity (20~80) %RH, place of use: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation
Equipment size
About 1000×750×900 (mm) W×H×D
Equipment weight
110kg
Use environment
Power supply: AC220V±10%/50-60Hz, use environment: working temperature 0-40℃, humidity 30%-90%.
