IEC 62196-1 Die Steel Test Plug Gauge Of Vehicle Connector Withdrawal Force Test
Products Description

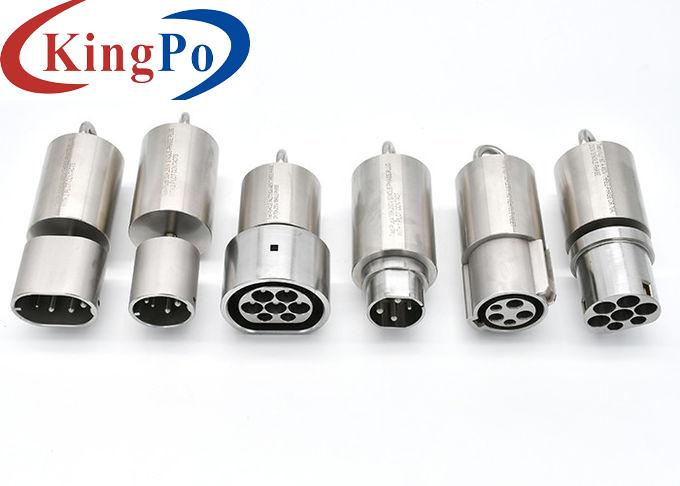

IEC 62196-1 Test Plugs Pins for Electric Vehicle Withdrawal Force Test
Product Overview:
These test plugs and gauges (test pins) are made of die steel, which are anti-rust and wear-resistant, they are the necessary accessories for withdrawal force test for electrical vehicle plugs, socket-outlets and connectors.
Test Plugs:
Nominal pin diameter
mm
Diameter of gauge
mm +0 -0.01
Minimum total force
N
No.:
Standard
Figure No.:
Name
QTY
1
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-I sheet 1
Test-plug1:32A,250 V AC VEHICLE INLET
1
2
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Ilb sheet 1
Test-plug1:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
1
3
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Ild sheet 1
Test-VEHICLE INLET2: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
1
4
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Ilf sheet 1
Test-VEHICLE INLET3: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
1
5
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Illa sheet 1
Test-Plug 4: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT
1
6
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Illb sheet 1
Test-Plug 6: 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS
1
7
IEC62196-2/Ed.3/CDV © IEC(E)
STANDARD SHEET 2-Illc sheet 1
Test-Plug 8: 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS
1
8
IEC62196-3/Ed.2/CDV © IEC(E)
STANDARD SHEET 3-Ib
Sheet 1Test VEHICLE CONNECTOR 10
1
9
IEC62196-3/Ed.2/CDV © IEC(E)
STANDARD SHEETS
CONFIGURATION BB
VEHICLE COUPLER 250 A 900 V DC
STANDARD SHEET 3-Iia Sheet 1Test VEHICLE CONNECTOR 11
1
10
IEC62196-3/Ed.2/CDV © IEC(E)
STANDARD SHEET 3-IIIa Sheet 2
Test VEHICLE INLET 12
1
11
IEC62196-3/Ed.2/CDV © IEC(E)
STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2
Test VEHICLE INLET 13
1
12
IEC62196-3/Ed.2/CDV © IEC(E)
STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1
Test VEHICLE INLET 14
1
5
4.80
2.5
6
5.80
5
7
6.80
5
8
7.80
10
10
9.80
15
12
11.80
20
Note: The minimum withdrawal force already includes the weight of the gauge
