IEC 62196-1 EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment
Products Description
IEC 62196-1 EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment
Product Information For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:
IEC62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c".
Samples and Restrictions: New energy charging vehicle plug, locking device between vehicle sockets and plug socket connector.
Test Purpose: It is used to test the insertion force and pull-out force of the new energy charging vehicle plug, the locking device between the vehicle socket and the plug and socket connector.
Test Principle: It adopts servo motor drive, PLC intelligent control, precise force value sensor to detect real-time force value, can set the peak value of force value, automatically stop when the set value is reached, and has a time curve of force value.
Structure For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:

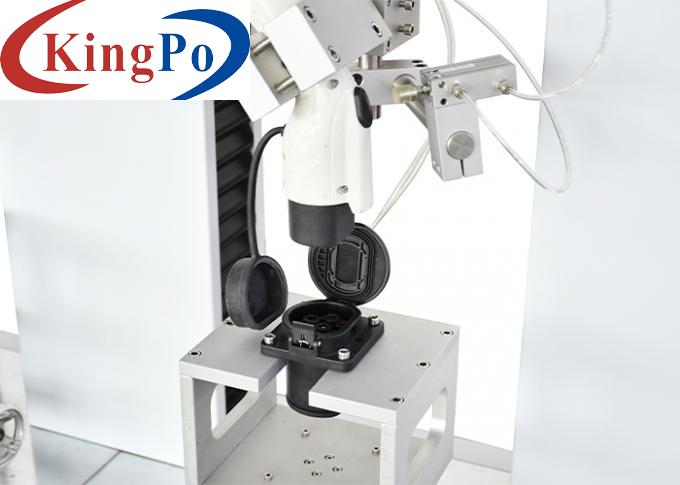

The overall 3-station structure of the equipment, each station includes an independent servo motor, a precision sliding table, a precision force sensor and a fixture, and the control is accurate.
Power supply: AC220V±10%/50Hz, power 2KW
Dimensions: about W1000*D850*H1550mm, weight: about 160kg
Technical Parameters For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:
Test station
3 stations, independent
Electrical control method
PLC intelligent integrated control, color man-machine touch interface operation (optional computer operation)
Drive mode
Servo motor drive
Test force value
10~1000N, other ranges can be customized
Load accuracy
±0.5%
Minimum load display
0.01N
Displacement minimum display
0.01mm
Insertion direction
Vertical
Test speed
0.01~100mm/min
Test floor
Thickened load-bearing steel plate
Lifting device
Precision slide
Specimen Holder
One special fixture for charging gun interface, other styles need to be customized
Protect
Over-strength alarm, leakage protection
