IEC 62196-1 Fig12 Electric Vehicle Connector Terminal Mechanical Test Equipment
Products Description
IEC 62196-1 Electric Vehicle Connectors Screw Terminal Testing Equipment
Equipment Overview:
This testing machine conforms to IEC 62196-1:2020 clause 13.3.1 fig12, table 3, etc. It is used to process mechanical tests on terminals, for judging whether the design and the structure of the new terminals are fitted with new conductors and of the minimum and the maximum cross-sectional areas is good. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.
The testing times can be preset before the test, and the test machine will stop automatically with completion alarm when the preset test times are reached.
Technical Parameters:
(10 ± 2) r/min for IEC 62196-1:2020, IEC 60884-1, etc.
(9±1) r/min for other standards such as UL 498
75mm for IEC 62196-1:2020, IEC 60884-1, etc.
76mm for other standards such as UL 498
Specimen Installation:
Parameter Name
Parameter Data
Power Supply
Match client's local power supply
Test Station
Single
Test Rate
Diameter of Gyration
Test Times
1-999999times
Load Weight
0.4-22.7Kg
Test Height
210-600mm adjustable
Diameter of Bushing
6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm
Equipment Dimensions & Weight
L 650mm* W 500mm * H 2010mm, approx. 68KG

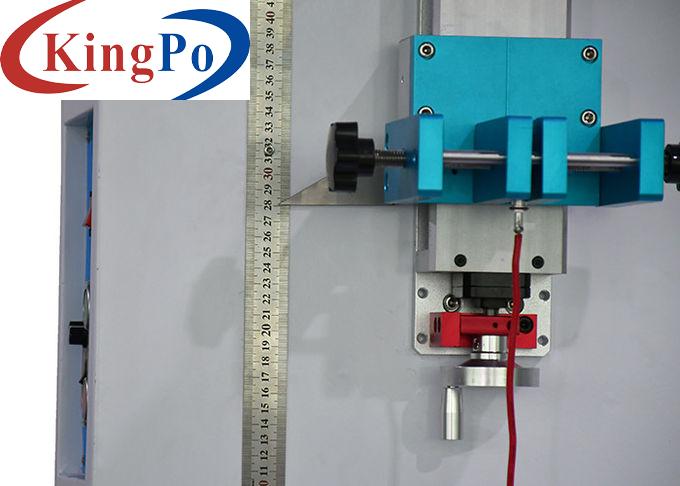

Connect the terminal to the corresponding conductor, then clamp the terminal tighten.
Pass the conductor through the corresponding bushing and hang the corresponding weight.
