IEC 62196-1 Steel Ball Impact Device For Electrical Vehicle Test

Product information:

The steel ball drop tester is suitable for digital cameras, mobile phones,
PDAs, calculators, notepads, telephones, automobiles and other complete machines or plastic shells are subjected to steel ball impact resistance tests to evaluate the impact strength of the products. This machine puts the product on the test bench, drops the steel ball with the specified load freely on the product from the specified alone, and detects the impact resistance of the product.

Standard: Conforms to IEC 62196-1Ed.4CDV 2020 clause 26.2, fig18, table 13.

Application: This device is suitable for drop impact test for equipment enclosure.

Test sample: Luminaries, Audio, video and similar electronic apparatus, Information technology equipment

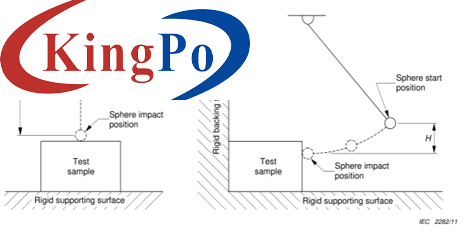

Feature: Equipment can carry out test in two forms of vertical drop and swing impact

Parameters:

1. Impact steel ball: diameter 50.8mm, 0.535kg
2. Drop height: 0.4-1.5m adjustable
3. Lift mode: Electric
4. Clamping release mode: electronic control
5. Power supply: 220V, 60Hz
6. Impact energy according to the following table:

Table 13 --  Impact energy for ball impact test
