IEC 62196 Computer Controlled Overvoltage Test System For Electric Vehicle Accessories
Products Description
IEC 62196 Computer Controlled Overvoltage Test System For Electric Vehicle Accessories
Power supply
AC 220V, 60Hz, 0.3KW
Test station
Single station
Electrical control method
Computer intelligent control and operation
Test pressure
1.0-10.0Bar, booster pump drive
Pressure control accuracy
+1% of the upper limit of the test pressure value, -1% of the lower limit
Display accuracy
0.1 Bar
Test medium
Dry air
Pressure control method
Computer control
Boost rate
Adjustable, non-uniform linear
Pressure hold time
0-9999s arbitrarily set, with seconds as the time unit, computer display
Test process
Boost-hold-relief
Drive air pressure
0.2-0.8MPa
Volume size
Less than 10L
Water tank dimensions
WDH=500×500×1000mm
Standard output Interface
ZG1/4 female thread
Pressure curve display
Real-time display, data collected by software
Test data storage
Can save reports in excel form
Computer
Intel i5 4 G RAM (or higher) 512 G solid state drive, Windows 7 operating system and OFFICE processing software with RS232 communication interface
Safety protection
Power
Leakage protection, overload and short circuit protection
Motor
Overload, short circuit protection
Product Information:

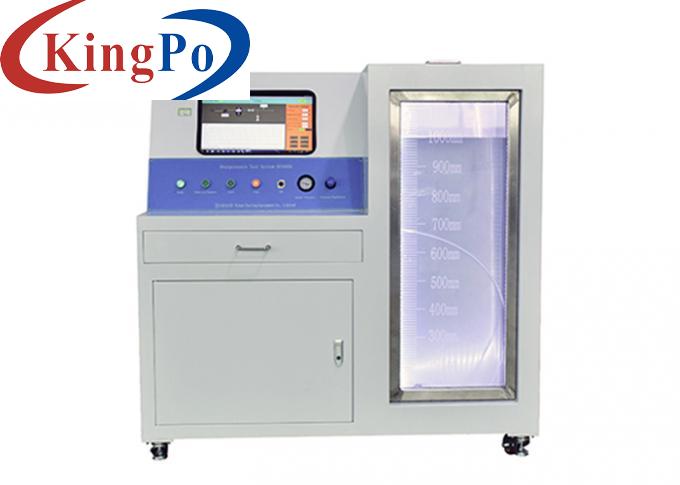

This overpressure test system meets the test requirements of IEC 62196-3-1 Cl 101.6. It is used for pressure leakage testing of liquid coolants up to 10L volume for sealing requirements.
The system's booster pump delivers high pressure at different pressures of the sample to verify the sample's pressure resistance. The system consists of an electrical control system, a pressure control system, and a water tank, and the workpieces are installed and connected manually.
Technical Parameters:
With transparent viewing window for observe bubbles
Users should consider the connection between our ZG1/4 female thread and the test specimen.
