IEC 62368-1 Annex V.1.6 Test Rod Probe With 1N Force

IEC 62368 Test Equipment

Products

MOQ:1
Price:Negotiable
StandardPackaging:StandardExportingBoxed
DeliveryPeriod:3~5Days
PaymentMethod:L/C,T/T
SupplyCapacity:100PCSPerMonth

+86 769 81627526 skype++++ Chat Now

Products Description

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KP2210-4T

Applied Standard：IEC 62368-1

Applied Clause：Annex V.1.6

Inserted Force：1N ± 0.1N

The Length Of Probe：100±0.2 (mm)

The Length Of Handle：100 (mm)

Probe Material：Stainless Steel

Minimum Order Quantity：1

Price：Negotiable

Packaging Details：Standard Exporting Boxed

Delivery Time：3~5 Days

Payment Terms：L/C, T/T

Supply Ability：100 PCS Per Month

Highlight：IEC 62368-1 Test Rod Probe, Annex V.1.6 Test Rod Probe, 1N Force Test Rod Probe

Product Description

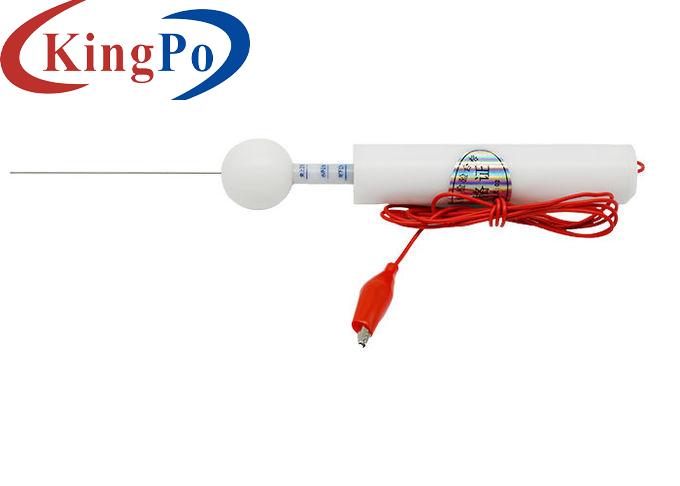

IEC 62368-1 Annex V.1.6 The Test Rod Probe with 1N Force

Product information:

This probe conforms to the standard requirement of IEC61032 test probe D, required by IEC 62368-1:2018 Annex V.1.6, IEC60529 for IP4, IEC60065 and etc. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Customizable: It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.

Technical parameters:

Parameters /Model	SN2210-4 (Optional)	SN2210-4T
Name	Test rod probe D	Test rod probe D with force
1	Ф1^+0.05 ₀ (mm)	Ф1^+0.05 ₀ (mm)
2	SФ35±0.2 (mm)	SФ35±0.2 (mm)
3	Ф10 (mm)	Ф10 (mm)
4	100±0.2 (mm)	100±0.2 (mm)
5	100 (mm)	----
6	----	1N force
