IEC 62368-1 Clause 4.8 Test Hook For Mechanical Strength Test Of Audio And Similar Electronic Apparatus

IEC 62368 Test Equipment

Products

MOQ:1
Price:Negotiable
StandardPackaging:CartonBox
DeliveryPeriod:3~5Days
PaymentMethod:L/C,T/T
SupplyCapacity:60SetsPerMonth

+86 769 81627526 skype++++ Chat Now

Products Description

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KP2210-18

Standard：IEC 62368-1

Clause：4.8

Test Hook Angle：90°

Hook Height：5±0.05

Probe Width：8±0.15

Probe Length：180±0.05

Minimum Order Quantity：1

Price：Negotiable

Packaging Details：Carton Box

Delivery Time：3~5 Days

Payment Terms：L/C, T/T

Supply Ability：60 Sets Per Month

Highlight：Clause 4.8 Test Hook, IEC 62368-1 Test Hook, Audio Mechanical Strength Test Hook

Product Description

IEC 62368-1 Clause 4.8 Test Hook Mechanical Strength Test

Product Information:

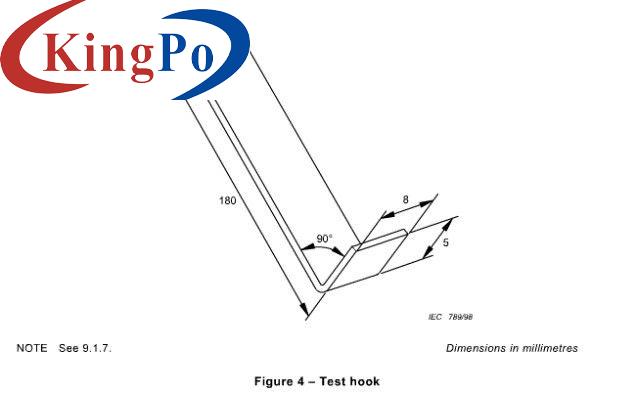

Standard:The test hook conforms to IEC 62368-1:2018 clause 4.8, IEC 60065:2014 clause 9.1.1.7, figure 4, 12.7.4

Application:It is used to test the enclosure mechanical strength of audio, video and similar electronic apparatus.Test sample: Audio, video and similar electronic apparatus.

Feature:It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force 20±2 N last for 10s. The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.

Technical Parameters:

Standard	IEC 62368-1
Clause	4.8
Probe length	180±0.05
Probe width	8±0.15
Hook height	5±0.05
Test hook thickness	1±0.15
Test hook angle	90°
Material	Stainless steel
