IEC60227-1 Flexible Cables Flexing Testing Equipment For Finished Flexible Cables
Products Description

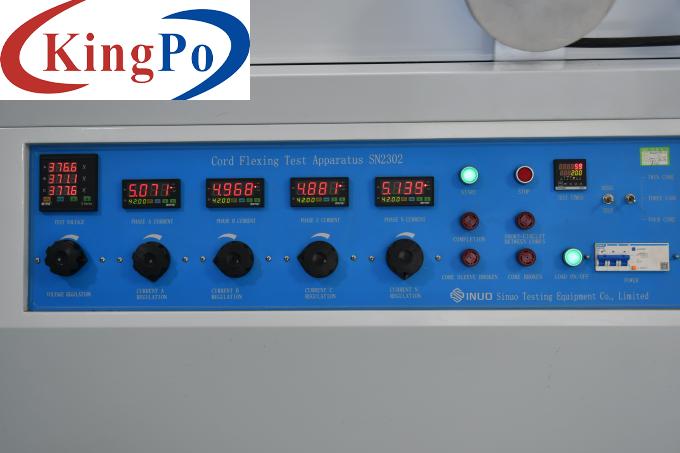

IEC60227-1 Flexible Cables Flexing Testing Equipment For Finished Flexible Cables
Product Infromation For Flexible Cables Flexing Testing Equipment:
The test machine is designed and manufactured according to standard IEC 60227.2 Clause 3.1 Figure 1, IEC 60245.2 Clause 3.1 Figure 1, IEC60245-1 clause 5.6.3.1 and etc. It complies with the relevant standard requirements of rubber plastic wires’ and cables’ mechanical strength flexing test. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.
The test apparatus can meet the standard test requirements of the domestic and international standards, can be widely used. It has precision digital meter, thus, can accurately measure the smaller or larger current voltage. The change method for pulleys is simple and convenient. The test equipment adopts to chain drive mechanism, the performance is stable and the noise is rare.
Technical Characteristics For Flexible Cables Flexing Testing Equipment:
Load Current
0-25A
Load Voltage
0-400V
Test Speed
0.33m/S
Testing Distance
1000±20mm
Test Times
0-999999,can be preset
Suitable cores
2-18
Nominal Cross-sectional Area
0.2-4 mm²
Diameter of Pulleys
60,80,120,160,200mm(Customer optional, three kinds of standard)
Weight
0.5-8Kg
Fault Detect
Current interruption, short circuit between conductors, test and short circuit between pulleys
Samples and Restrictions
Finished Soft Cable
Application
Used for the mechanical strength test of finished flexible cables. This test is not applicable to cables with more than two concentric layers whose conductors have a nominal cross-section of over 18 cores.
Test Principle
The 5m long sample passes through a pair of pulleys to reciprocate within a 1m stroke to realize the bending test of the wire and cable.
Structure
Equipment dimensions:about:1400×800×1450(mm)W×D×H,weight:280kg
Use Environment
Power supply:AC380V±10%/50-60Hz,working temperature:0-40℃ humidity:30%-90%
