IEC60335-1 Clause 29 Creepage Distance Test Cards Measuring Gauge
Products Description

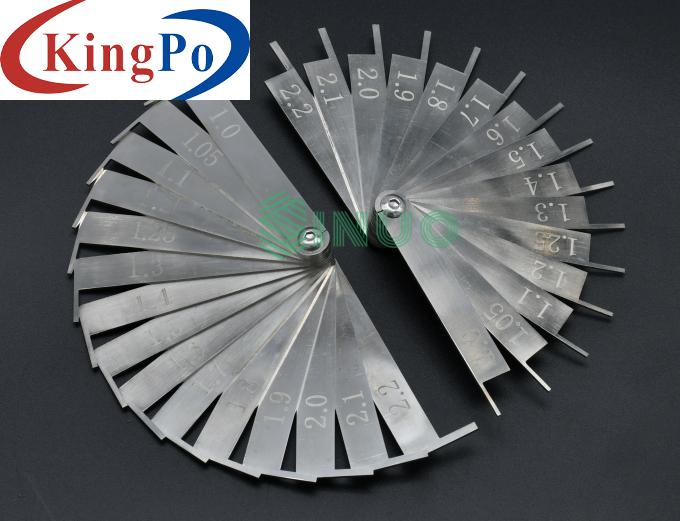

IEC60335-1 Clause 29 Creepage Distance Test Cards Measuring Gauge
Product information:
These creepage gauges is required by IEC60335-1 Clause 29, IEC 60884-1: 2013 clause 27, IEC60598, and etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.
Technical parameters:
1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm
/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
Size Specification
Material
Stainless steel
