IEC60335-2-6 Clause 11.101 Surface Temperature Probe With Thermometer
Products Description

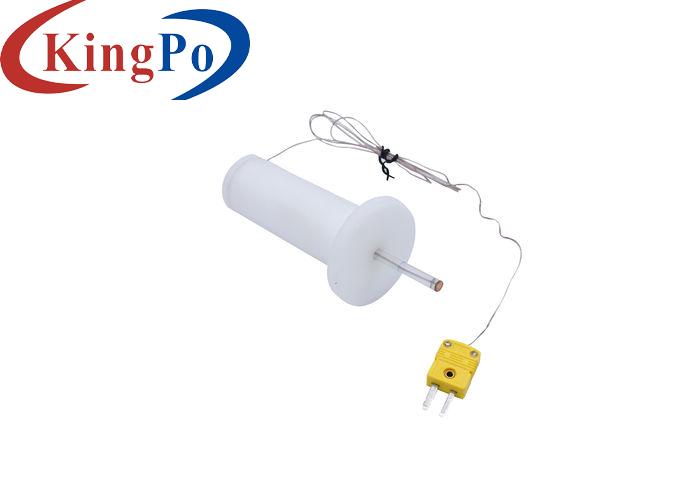

IEC60335-2-6 Clause 11.101 Surface Temperature Probe (With Thermometer)
Product Overview:
Technical Parameters:
What is a surface temperature probe?
The surface temperature probe conforms to the standard requirements of IEC60335-2-6:2018 Clause 11.101figure 104, EN 60335-2-9/A12 Clause 11.3 Figure Z101, IEC 60335-2-11 Clause 11.3figure 101, and etc.
It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of electrical appliances such as drum-type dryer, upright electric cooker, cooking bench and oven.
Standard
IEC60335-2-6:2018 Clause 11.101figure 104
Scope of application
It used to measure the temperature rise of the accessible parts of household tumble dryers, electric stoves and ovens
Copper
Φ5*0.5mm
Polycarbonate tube
The internal diameter Φ3 mm, the external diameter Φ5mm
Thermocouple
K type, Φ0.3mm
Pull force
4±1N, Scale display
Handle
Nylon
Configuration
Thermometer
Surface temperature probes to measure almost any surface. From the handle roller styles to the high-temp foundry style probe, surface thermocouples to meet the most challenging measurement requirements.
