IEC60335 Clause 11.101 Power Cord Flexibility Performance Testing Equipment
Products Description
PLC Power Cord Flexibility Performance Tester
Standard & Clause:
The PLC Power Cord Flexibility Performance Tester is special designed and manufactured according to IEC60335-2-23 clause 11.101, it is used to check the rotary joint of the hair & skin care apparatus after a continuous rotating operation.
Equipment Principle and Structure:
The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, bending angle adjustable, 5kw output power, can also supply load current to test sample (1.25 times of test sample’s rated current). Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.
Techanical Parameters:
Item Name
Parameters
Flexing or swivel angle
0-360°. Can be preset
Flexing or swivel speed
0~60 rpm, can be preset
Test times
0~999999 times, can be preset and displayed
Power
220V 50Hz
Control
PLC programmable control
Drive
Servo motor
Operation
7-inch touch screen intelligent operation
Max. output power
5KW
Output voltage
0~250V adjustable
Max. output current
16A
Max. carrying capacity
15kg
Test station
1 station
Specimen fixture

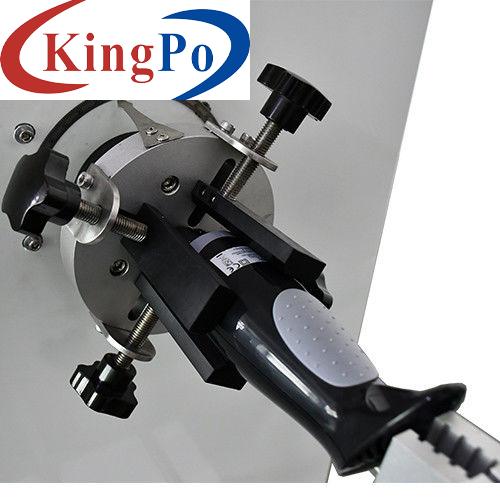

Universal fixtures for skin & hair care appliances, 1 set
Temperature Measuring
Hand-held infrared thermometer, -50°C~750°C
Load weights
1N*1
Standards
11.101 of IEC60335-2-23
