IEC60335 Household Cordless Kettles Electrical Appliance Testing Equipment
Products Description
IEC60335 Electrical Appliance Testing Equipment For Cordless Kettles
Product overview
Built-in load or external load can be optional for this test equipment, the test times can be preset (max. 999999 times), the test time and conduction times can be recorded automatically, the testing will be stopped automatically after the preset test times are completed. Adopts floor-standing structure, with touch screen.
Equipment dimensions: about: 1200 × 500 × 1200 (mm) W × H × D, equipment weight: 140kg.
Standards
IEC60335-2-3:2015
IEC60335-2-15:2016
IEC60335-2-14:2016
Samples & Principles
Household or similar electrical appliances such as cordless irons, cordless kettles, cordless coffee makers, cordless blenders.

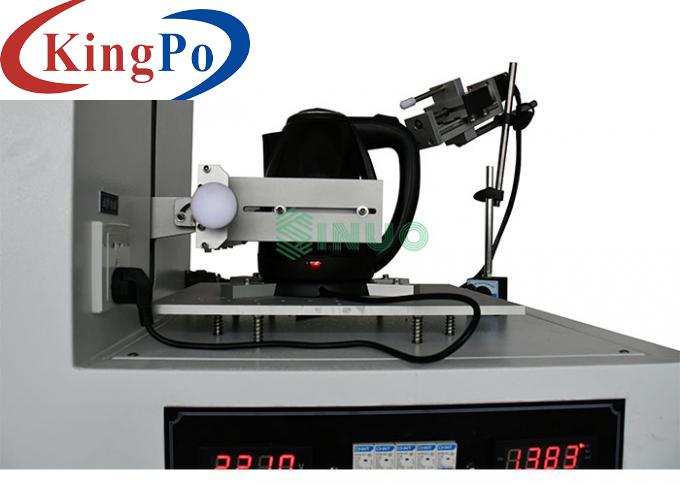

The two live pins of the cordless appliance (such as cordless irons, cordless kettles, cordless coffee makers, cordless blenders) are connected together and an external resistive load is connected in series with the supply. The external load is such that the current is 1.1 times rated current. Then the cordless appliance is placed on its stand and withdrawn at a rate of approximately 10 times per minute through the servo motor drives the lifting mechanism. The test is continued without current flowing for a further 10000 times for cordless kettles and cordless coffee makers and 6000 times for other cordless appliances.
Technical parameters:
Built-in voltage 0-250V,current 0-15A adjustable,
Without built-in voltage and current can be optional
Input Power Supply
AC220V±10%/50Hz, 6KW
Test Station
Single (multiple stations can be customized)
Control Method
PLC intelligent integrated control, 7-inch humanized touch screen operation
Drive Mode
Servo motor drive
Sample Clamping Method
Mechanical clamping, the position of clamping point is adjustable; default with clamping fixture for cordless kettles, the clamping fixtures for cordless iron, cordless blenders and other cordless appliances should customized.
Stand & Withdrawn Stroke
0-100mm, can be preset on touch screen
Test Times
0-999999 times, can be preset
Conduction Times
0-999999 times, can be displayed on the touch screen
Load Power Supply
Judgment
According to whether the current is conducting or not
Test Contents
Cordless electric iron stand and withdrawn test (with/without load power supply); cordless kettle / cordless coffee maker stand and withdrawn test (with/without load power supply); cordless blender stand and withdrawn test (with/without load power supply)
