IEC60529 2013 IPX3~4 Oscillating Tubes Test System
Products Description
IEC60529:2013 High Quality IPX3~4 Oscillating Tubes Test System
Product information:
IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013. It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.

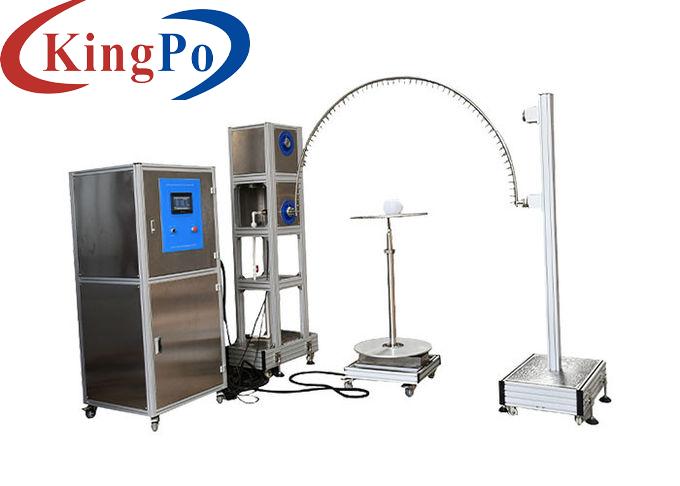

The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.
The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.
No.
Item
parameters
1
Water supply
Water flow rate＞10L/min±5% clean water without inclusion.
2
The size of the oscillating tube
Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
3
Needle hole
Φ0.4mm
4
Included angle of two holes
IPX3:120°; IPX4:180°
5
Oscillating tube swing angle
Max. ±175° can be preset
6
Raining speed
IPX3:4s/time (2×120°);
7
Water flow
Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)
8
Testing time
1-99999S can be preset
9
Pressure gauge
0~0.25MPa
10
Turntable
Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
11
Site requirements
Dedicated IP waterproof test room, the ground should be flat with illumination.
12
Electrical control
PLC & touch screen
13
Power supply for this equipment
AC 380V, 50Hz, 4KW
Technical parameters:
This device is equipped with clean water filtration unit
(Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
IPX4:12s/time (2×360°);
10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage.
Ground installation.
14
Power supply for sample
AC220V, 10A
