IEC60529 2013 IPX7 Immersion Test Chamber With Electric Lifting Control Cabinet
Products Description
IEC60529: 2013 IPX7 Immersion Test Chamber With Electric Lifting Control Cabinet
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water
Product Overview For IPX7 Immersion Test Chamber:
The IPX7 immersion test chamber is designed and manufactured in accordance with the requirements of IEC 60529:2013. Used for testing the IPX7 waterproof level of electrical and electronic products.
The complete set of IPX7 immersion test chamber is composed of water tank, electric lifting basket and control cabinet.
Technical parameters For IPX7 Immersion Test Chamber:
Chamber external size
Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size
Length 1000* W 1000* H1800mm
Max. test water depth
1.8m
Observation window
Tempered glass (thickness: 12mm)
Observation window width
200mm
Water level adjustment method
Water inlet / drain valve, manual adjustment
Water level display
Scale (accuracy 1mm)
External chamber material
Stainless steel plates + Aluminum profile frame
Inner chamber material
2.0mm thickness stainless steel
Electric lifting basket

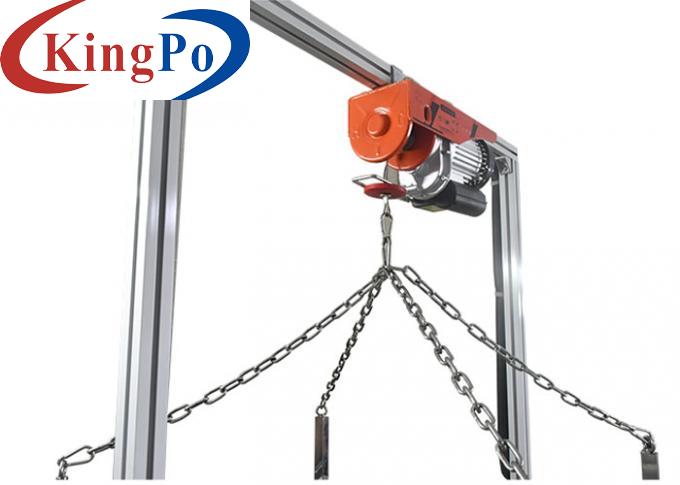

Made of stainless steel, controlled by electric hoist
Control method
Buttons (non-PLC)
Test time
0.01 second-99.99hours can be preset
Immersion depth requirements
The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content
IPX7
Power supply
AC 220V,50Hz, 1KW
No.:
Failure phenomenon
The cause of the failure
Approach
1
Equipment is powered on, but timer does not show any value
External power supply fails
Reconnect power supply
Power control breaker is off
Turn on the breaker in the control box
2
No action when the start button is pressed
The test time is not cleared
Press “Stop/Clear” to clear time
