IEC60529 IPX1~2 Vertical Rain Drip Test System To Verify Water Drops
Products Description

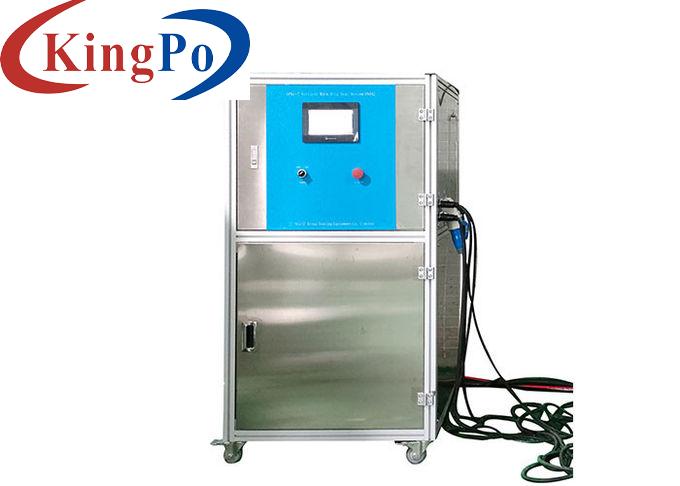

IEC60529 IPX1~2 Vertical Rain Drip Test System To Verify Water Drops
Product Information For IPX1 IIPX1~2 Vertical Rain Drip Test System:
This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.
The rise and fall of the drip box is controlled by the motor. The electrical control cabinet is with PLC and touch screen.
1. Stainless steel fine filter for dirt filtration.
2. Adopts compressed air (compressed air should be prepared by user) to blow out the water in the needles, to prevent water reactive substances and atmospheric blocking needles.
3. Stainless steel general medical needle nozzles, easy to buy, not easy to rust.
4. Needle nozzles and needle nozzle seats using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.
Technical Parameters :
Item
Specifications
Power supply of this equipment
Three phase AC380V, 50Hz, 4KW
Power supply for test sample
Single phase AC220V, 16A
LWGYD-4 flow rate Sensors
Flow range: 0.667-4.167 L/min, pulse output
Small water pump
Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range
IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2
Drip area: 1000*1000mm
Diameter of drip hole: 0.4mm
Distance between each two neighbor holes:20mm
Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Test time
Set according to the test standard (range 1-9999 seconds), the unit is: second
Water dripping height
200mm (automatically controlled by the test equipment)
Water Drainage
Automatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
Equipment body material
Industrial aluminum alloy
Installation method
Wall Mount
Turntable
1-5r/ min, can be set
Control
PLC & 7” touch screen
Troubleshooting:
No.:
Failure phenomenon
Reason of issue
Treatment
1
Turn on the power switch and the touch screen does not light up
External power supply fails
Reconnect external power supply
Equipment MCB is disconnected
Turn on the equipment MCB
2
No action when the start button is pressed
The run time is not cleared
Press Count Clear
The emergency stop switch is not reset
Reset the emergency stop switch
Inverter alarm
Restart after power off
3
Little or no water from the needles
Needles are clogged
Replace the needle or remove the needle and blow through the needle hole with airflow
4
Unstable flow
Air in the pipeline
Press “Dry Drip Box” in the Manual control interface to exhaust the air, or open the vent of the water pump to exhaust the air
