IEC60529 Stainless Steel Sand And Dust Test Chamber
Products Description
IEC60529 Stainless Steel High Quality Sand And Dust Test Chamber
Product information:
The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it also has large observation window and manual wiper device. The security protection is good.

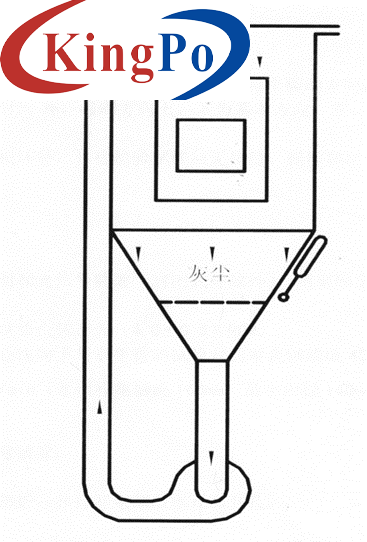

The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Technical Parameters:
Model
SN4412
Working size(mm)
L1000*W1000*H1000
Outer size (mm)
L1610*W1250*H1950
Main technical parameters
Temperature range
Room temperature
Test dust
dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.
Test sand (or talc) dosage
2kg/m³
Vacuum pump
0~30Kpa
Air pressure
0.5~1.0Mpa
Sample rack height adjustment range
0~750MM
Timing range
0~99 hours 59 min
Timing accuracy
±1min
Load cycle control
0~99 hours 59 min
Ash blowing cycle control
1s~9999 min
Sand and dust concentration
2～4kg/m3
Air flow speed
≤2m/s
Model
SN4412
Working size(mm)
L1000*W1000*H1000
Outer size (mm)
L1610*W1250*H1950
Main technical parameters
Temperature range
Room temperature
Test dust
dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.
Test sand (or talc) dosage
2kg/m³
Vacuum pump
0~30Kpa
Air pressure
0.5~1.0Mpa
Sample rack height adjustment range
0~750MM
Timing range
0~99 hours 59 min
Timing accuracy
±1min
Load cycle control
0~99 hours 59 min
Ash blowing cycle control
1s~9999 min
Sand and dust concentration
2～4kg/m3
Air flow speed
≤2m/s
Product main configuration:
Device Name
Dust and Sand Test Chamber
Main configuration
Cabinet
Enclosure material
A3 plate electrostatic spraying
Inner material
SUS304B Stainless steel
Lead hole
The sample can be external power supply through this hole
Observation window
large observation window in the middle of the door
Electrical control system
Controller
PLC Control:
A. blowing dust time (stop, blowing) can be adjusted
B. Cycle: arbitrary adjustable
C. Preset test time: 0.1H-9999.9H arbitrary adjustable
D. Power: On-off- On
E. There are accumulating function and power-off protection function
Vacuum system
Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe
Security
Protection
Device
Power overload, short-circuit protection
Ground Protection
Voltage Protection
Motor phase loss protection
Alarm beep prompt
Power Supply
Three phase 380V, 50Hz,3KW
