IEC60695-11-10/20 Plastic Material 0.75m³ 50W 500W Flames Horizontal and Vertical Burning Test Chamber
Products Description

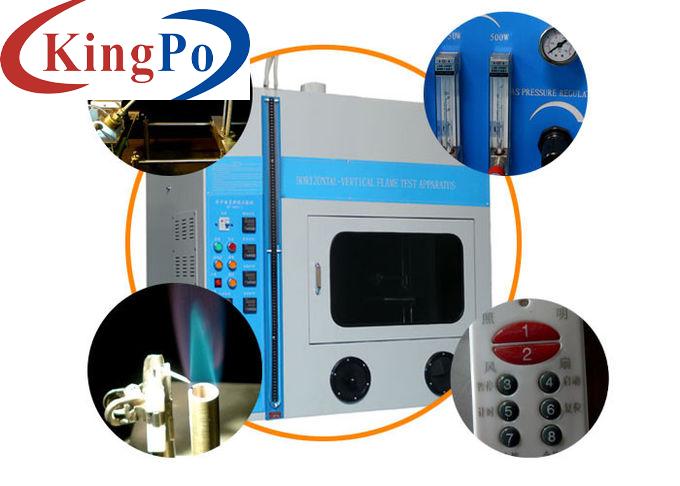

50W 500W Flames Horizontal and Vertical Burning Test Chamber UL94 Plastic Material Flammability Testing Equipment
Overview:
This horizontal and vertical buring test apparatus is used for testing flammability of plastic materials for parts in devices and appliances. It meets the requirements of standards IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20 and UL94.
The test chamber has an inside volume of at least 0.5m3. The chamber has a large observation window on the door, which permits observation of test in progress, and the chamber is be draft free while allowing a normal thermal circulation of air past the test specimen during burning. The inside surface of the chamber is painted to be a dark color, when measured by a light meter, facing towards the rear of the chamber, is positioned in place of the test specimen, the recorded light level shall be less than 20lx. For safety and convenience,the enclosure ( Which can be completely closed) is fitted with an extraction device, such as an exhaust fan, to remove products of combustion which may be toxic. The extraction device can be turned off during the test and turned on immediately after the test to remove the fire Effluents. A postive closing damper may is equipped.
Technical Parameters:
Ф5.5mm,
1.76 g±0.01 g
(before drilling)
Ф9mm,
10g±0.05 g
(before drilling)
15 °C to 35 °C temperature,
45 % to 75 % relative humidity
Flame application to the specimen in the horizontal or vertical state several times according to a certain flame height and a certain flame angle, evaluting the specimen's flammability according to afterflame time, afterglow time and wether the underlay under the specimen are ignited.
KingPo offers kinds of testing equipment based on the standard requirements of IEC, BS, VDE, UL, GB, ISO and etc., and customize testing systems or devices based on clients' specific requirements, also KingPo can offer proposals for building an entire laboratory. We have our own senior professional technical team and cooperated with universities and research institutions, together with our strength manufacturing ability, we can offer clients fast reponses and one-stop service.
Flames
50W flame
500W flame
Standards application
IEC60695-11-4, IEC60695-11-10, UL94
IEC60695-11-3, IEC60695-11-20, UL94
Timing device
0~9999, resolution:0.1s
0~9999, resolution:0.1s
Combustion angle
0°, 20°, 45°
0°, 20°, 45°
Gas pressure
0.1 MPa
0.1 MPa
Height of flame
Total height 20±2mm
Inner flame 40±2mm total height 125
Distance for temperature measurement
10±1mm
55±1mm
Standard for blast burner
IEC60698-11-4, UL94
IEC60695-11-3, UL94
Temperature range
Max. 1100℃, thermocouple: type K
Max. 1100℃, thermocouple: type K
Gas flow rate
105 ml/min±5 ml/min
965 ml/min±30 ml/min
Water column height
＜10mm
125mm±5mm
Temperature rising time
From 100℃±5℃ to 700℃±3℃ is 44s±2s
From 100℃±5℃ to 700℃±3℃ is 54s±2s
Accuracy of flow rate
1%
1%
Weight of copper block
Type of gas
Methane or coal gas
Methane or coal gas
Volume of chamber
0.75m³, black inner painted
Control
Button operation + remote controller
Display
Digital display
Using environment
