IEC60695-11-5 Needle Flame Flammability Test Chamber PLC Control
Products Description

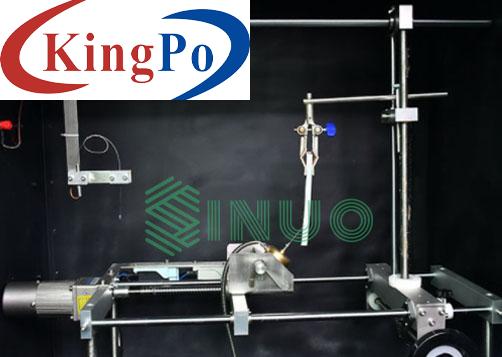

IEC60695-11-5 Needle Flame Flammability Test Chamber
Product overview:
The needle-flame test method apparatus meets the requirements of IEC60695-11-5, it is required by IEC60335-1 clause 30.2.3.2, Annex E, etc.The Needle Flame Test apparatus adopts a Ф0.9mm needle-shaped burner that tilts with the angel of 45°and provide it with butane gas. The fire hazard of the equipment when there is flammable inside the equipment that caused due to the fault condition is assessed by whether the sample can be ignited or the combustion time and length.
The Needle Flame Test chamber is equipped with an advanced PLC control and 7 inch color touch screen, which is convenience for operation. It is suitable for the research, production and quality testing department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, electrical connector, electrical and electronical equipment and other components. It is also suitable for insulating material, engineering plastics or other solid combustion material industry.
Technical parameters:
Parameter/ model
SN773B (PLC + touch screen version)
Working voltage
Match client's local power supply requirements
Control
Advanced PLC
Display
7 inch color touch screen
Timing device
9999X0.1S
Combustor
Inner boreφ0.5mm ± 0.1mm, OD ≤φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle
tilt 45° (testing) or vertical (when adjust the height of the flame)
Height of the flame
12±1mm adjustable (with flame height gauge)
Gas category
95% Butane (should be prepared by user)
Range of temperature test
0~1000℃
Flame warming requirement
From 100°to 700°, time for standard values within 23.5S±1S
Temperature thermocouple
φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work shop
0.5 cube, stainless steel case, dark background
Testing process
Test procedure automatic control, independent air draft
Volume size adjustment
Flowmeter adjustment
Equipment size & weight
1100mm* 550mm* 1100mm, 120KGS
Conforms to standard
IEC 60695-11-5, IEC60335-1, etc.
