IEC60884-1 Switch Life Tester Plugs Sockets Switches Breaking Capacity Endurance Test
Products Description
Plugs Socket-outlets Switches Breaking Capacity and Normal Operation Endurance Testing Equipment
Standards & Clauses:
IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 20 and 21
IEC61058-1:2016 “Switches for appliances Part1: General requirements” clause 17
IEC60669-1:2017 “Switches for household and similar fixed-electrical installations - Part1: General requirements” clause 18 and 19
IEC60320-1:2018 “Appliances couplers for household and and similar general purposes- Part1:General requirements” clause 19 and 20
Samples and Restrictions:
Various plugs and sockets, appliance couplers, switches and other similar electrical accessories.
Application:
It is used to check the breaking capacity and normal operation endurance of switches, plugs and sockets, couplers for household and similar fixed electrical installations, to assess whether the switch, plug and socket can withstand mechanical hazards and electrical fatigue damage during normal use, whether there is contact sticking or long-term closure or disconnection, and whether there is excessive wear and other harmful consequences.
Test Principle:
The test equipment adopts the servo motor to drive the fixture mechanism, then the sample is linearly pressed, toggled, rotated, etc., and supplied with load voltage and current. The test time, test speed, stroke, and angle can all be preset on the touch screen.
Structure:

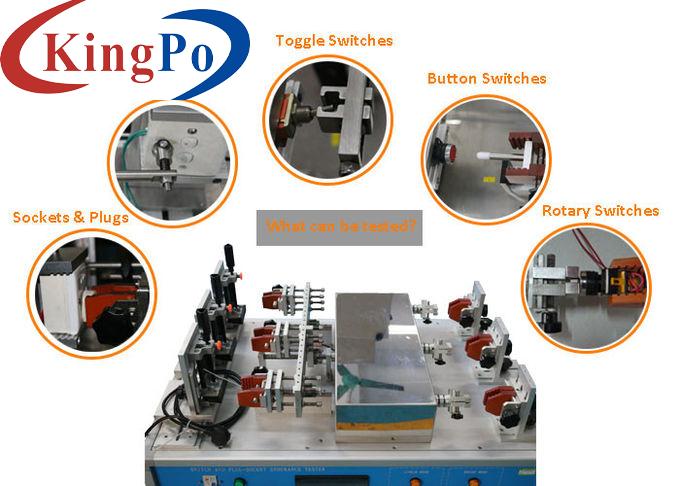

It adopts integral frame, servo motor, precision ball screw and synchronous belt, 7-inch color touch screen for humanized operation and with powerful digital display function, PLC intelligent control system, three-axis adjustable fixtures, which can test most of the button switches, toggle switches, rocker switches, rotary switches, plugs and sockets.
Use Environment:
Power supply:AC220V±10%/50-60Hz or match client's local power supply requirements
Working temperature 0-40 ° C, humidity 30%-90%
Technical Parameters:
2 stations (three combination as following can be optional):
2 linear independent stations; or 2 rotation independent stations; or 1 linear 1 rotation independent stations
6 stations:
3 linear sync stations and 3 rotation sync stations
Mechanical clamping method, the position of clamping point of the 3-axis fixture can be adjustable
Mechanical clamping method, the position of clamping point of the 3-axis fixture can be adjustable
Breaking capacity testing for switches
Normal operation endurance testing for switches
Breaking capacity testing for plugs & socket-outlets
Normal operation endurance testing for plugs & socket-outlets
Breaking capacity testing for appliance couplers
Normal operation endurance testing for appliance couplers
Breaking capacity testing for switches
Normal operation endurance testing for switches
Breaking capacity testing for plugs & socket-outlets
Normal operation endurance testing for plugs & socket-outlets
Breaking capacity testing for appliance couplers
Normal operation endurance testing for appliance couplers
Model
SN2116A
SN2116B
Test Station
Electrical Control Method
PLC intelligent integrated control, 7-inch humanized touch screen operation
PLC intelligent integrated control, 7-inch humanized touch screen operation
Drive Mode
Servo motor drive
Servo motor drive
Sample Clamping Method
Replaceable Mechanism
Universal fixtures, push rod for button switches, toggle mechanism for toggle switches, pulley mechanism for rocker switches
Universal fixtures, push rod for button switches, toggle mechanism for toggle switches, pulley mechanism for rocker switches
Linear Stroke
0-100mm, can be preset
0-100mm, can be preset
Rotation Angle
0-360°, multiple gears can be preset
0-360°, multiple gears can be preset
Conduction Time
0-99.9s, can be preset
0-99.9s, can be preset
Test Speed
15 times/min, 7.5 times/min, 30times /min, can be preset
15 times/min, 7.5 times/min, 30times /min, can be preset
Test Times
0~999999 times, can be preset
0~999999 times, can be preset
Load Power Supply
External, 2 channels terminal blocks
External, 6 channels terminal blocks
Optional Considerations
The rotary switches can be only tested on rotation station, the button switches, toggle switches, rocker switches, plugs and sockets can be tested on the linear stations.
The rotary switches can be only tested on rotation station, the button switches, toggle switches, rocker switches, plugs and sockets can be tested on the linear stations.
Test Contents
Dimensions & Weight
Approximately:800×800×800(mm)W×D×H, 100kg
Approximately:1200×800×800(mm)W×D×H, 150kg
