IEC60947-1 Tensile Strength Test Machine With Test Range 50KN Adopts Computer Control

Product information:

This machine adopts computer control, widely used in the mechanical properties of various materials test, with special fixture is also suitable for all kinds of finished products tensile, compression, stripping, shear, tear, bending (folding) test. It can print a number of data, according to different data to make graphic output comparison, high control precision, easy to operate; Modular design, a variety of accessories variety, flexible collocation.

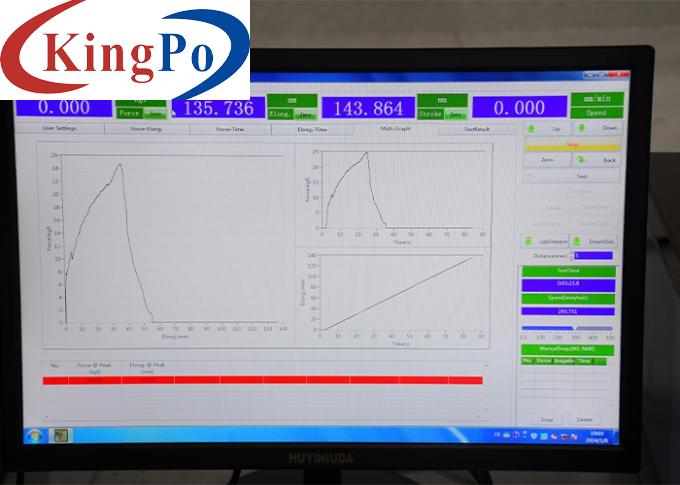

Control software introduction:

1.Software operating system language: English.

2. Force value unit: N, KN, Kgf, Lbf

3. Length unit: mm, cm, inch can be freely converted

4. Control mode: computer software to set speed, set load break (rupture), running time and other control modes

5. Type of curve: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time. The vertical and horizontal coordinates of the curve can be set arbitrarily.

Working conditions of the testing machine:

1. In the range of room temperature 10℃-35℃, the relative humidity is not more than 80%;

2. Install correctly on a solid foundation or workbench;

3. In a vibration-free environment, leave no less than 1m space around;

4. No corrosive media around;

5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.


Technical parameters:
