IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench
Products Description
IEC61851-1 EV Conductive Charging System Static Load Test Bench
Product Information For Static Load Test Bench:
Comply with the standards and clauses of EN IEC 61851-1-2019, IEC 61851-1-2017. Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles
Test principle: Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the standard requirements and keep it constant for a certain time to verify its mechanical strength

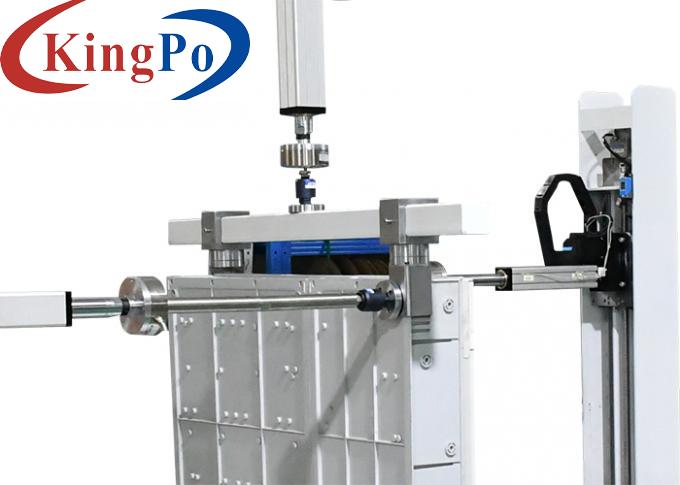

Structure and features: The machine adopt a frame structure, which is divided into a horizontal loading part and a vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. The 3 actuators realize the mobile loading with 8 degrees of freedom in total.
Technical Parameters For Static Load Test Bench:
1. Static load test on the top (0-10kn)
2. Lateral thrust test (0-1500N), two positions
Top: 0-10KN
Side: 0-1500N
Operation method
PLC control and touch screen operation
Drive
Servo motor
Test items
Loading direction
Horizontal 2-way, vertical 1-way (divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane, which is 3 degrees of freedom. 3 actuators achieve 8 degrees of freedom in total mobile loading)
Movable range
3 to 8 degrees of freedom
Loading method
Electric
Range of force
Speed of force
0.1-50mm/s
Constant force time
0-9999s, can be preset
Power supply
AC220V/50Hz
Way of moving
Electric steel ball screw + precision linear guide rail adjustment mechanism
Use environment
Dimensions: about W3300*D2000*h2550mm. Weight: about 450kg
