IEC62133-1 20V 30A Battery Testing Equipment For Lithium Ion Battery / Cell Charge Discharge Capacity Test
Products Description

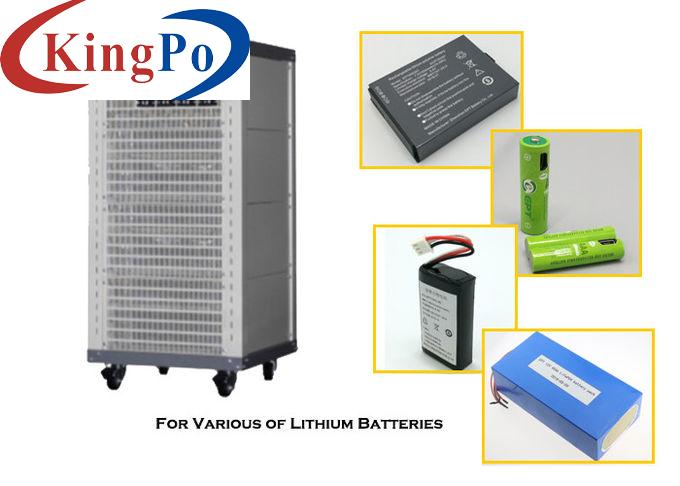

IEC62133-1 20V 30A Charge Discharge Capacity Lithium Ion Battery And Cell Test Equipment
Project index
Parameter index
≤(365*24 )hour/step,
Equipment Working Environment:
Project index
Parameter index
Overview:
This battery charge discharge testing equipment meets the requirements of battery and cell pulse charge and discharge test, DC internal resistance (DCIR) test, cycle life (Cycle Life) test, rate charge and discharge test. This testing equipment comes with unique software, which can run on computer to achieve romote control and minitor.
This series of battery testing systems are widely used in various research institutions, universities and power battery manufacturers.
Standards & Clauses:
Conforms to IEC62133-1/-2:2017 clause 7.1, 7.2.1, 7.3.8, 7.3.9, IEC62133-1/-2:2012 clause8.1.1, 8.1.2, 8.2.1, 8.3.6, 8.3.7 IEC60086-4 clause 6.5.8 6.5.9 IEC60622, IEC60623, IEC 60086-1, IEC61951, IEC61960
Technical Parameters:
Input Power
AC 220V ±10% / 60Hz (can be customized)
resolution
AD:16bit；DA:16bit
Input Resistance
≥1MΩ
Input Power
6684W
Channel Control Feature
Constant current source and constant voltage source adopt independent double closed loop structure
Channel Control Mode
Independent control
Voltage
Voltage Range Per Channel
100mV~20V
Minimum discharge voltage
2.5V
Accuracy
± 0.1% of FS
Constant voltage cutoff current
0.06A
Stability
± 0.1% of FS
Current
Current Range Per Channel
150mA~30A
Accuracy
± 0.1% of FS
Stability
± 0.1% of FS
Power
Per Channel Output Power
600W
Stability
± 0.2% of FS
Time
Current Response Time
Maximum current rise time 20m S
Step Time Range
Time Form Support 00:00:00:000(h, min, s, ms)
Data Recording
Record Condition
Time△t: 100ms
Voltage△U: 40mV
Current△I: 60mA
Record Frequency
10Hz
Charge
Charge Mode
Constant current charging, constant voltage charging, constant current and constant voltage charging, constant current and constant voltage of the battery pack, constant power charging
Cutoff Condition
Voltage, current, relative time, capacity, -ΔV
Discharge
Discharge Mode
Constant current discharge, constant power discharge, constant resistance discharge
Cutoff Condition
Voltage, Current, Relative Time, Capacity, -ΔV
Pulse Mode
Charge mode
Constant current mode, Constant power mode
Discharge mode
Constant current mode constant power mode
Cutoff conditions
Time, line number
Min. pulse width
500ms
Number of pulse
Single pulse step supports 32 different pulses
Continuous switching of charge and discharge
A pulsed step can achieve continuous switching from charge to discharge
Cutoff condition
Voltage, relative time
DCIR Test
Supports custom point retrieval for DCR calculations
Cycle
Loop Measure Range
1~65535 times
Max Steps Per Loop
254
Nested Loop
Nested loop Function, Max Support 3 Layers
Protection
Software Protection
Voltage and current detection sampling
Four-wire connection
Noise
<85dB
Noise
<85dB
Database
MySQL Database
A Means of Communication of Upper Machine
TCP/IP Protocol
Data Output
EXCEL2003/2010, TXT
Communication Interface
Ethernet Port
Per Unit Main Channels No.
8
Dimensions
12U chamber, W*D*H:600*600*1260(mm)
Fixture
To be determined
Working Temperature Range
0℃~40℃
Storage Temperature Range
-10℃~50℃
Working Environment Relative Humidity Range
≤70% RH (No condensation)
Storage Environment Relative Humidity Range
≤80% RH(No condensation)
The number of channels, voltage range, current range and etc. can be customized according client's specific requirements and specimen. Please email or call to KingPo for further assistance.
