IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen
Products Description

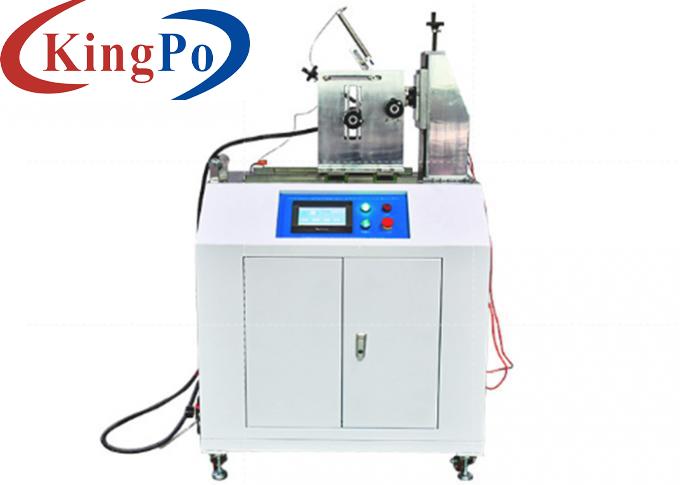

IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen
System Introduction:
The test equipment meets the requirements of articles 22 and 23 of IEC62196-1: 2020, 20 and 21 of IEC60309-1: 2012.
Used to verify that electrical accessories such as charging interfaces, industrial plugs, sockets and couplers can withstand mechanical, electrical and thermal stresses during normal operation without excessive wear or other harmful effects.
Servo motor drive mechanism, so that the sample repeated plug and pull action. External loads can be used to test the fracture capacity. Boot / shutdown time, test speed, stroke, angle can be preset on the touch screen.
Technical Parameters:
Mechanical Endurance Test Machine
Test Station
Single, can be customized
Electrical Control Method
PLC intelligent integrated control, with color humanized touch screen
Drive Mode
Servo motor drive
Sample Clamping Method
Mechanical clamping, clamping point position can be adjusted along the three axis fixture
Linear Stroke
0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)
Conduction Time
0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)
Speed of Insertion and Separation
0-0.85m/s can be preset,default(0.8±0.1)m/s
Test Cycles
0 ~ 999999 cycles can be preset (one trip is the insertion or withdrawal of the plug or vehicle connector and its matching accessories). A loop consists of two strokes, one for insertion and one for exit.
Test Frequency
0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min)
Load Cabinet
Channel
1 Channel
Digital voltmeter
0～300V, accuracy ±0.5%
Digital ammeter
0～82A, accuracy ±0.5%
Digital display power meter
0～24KW, accuracy ±0.5%
Digital display power factor meter
0.2～0.999, accuracy ±0.5%
Load mode
Resistive, inductive, capacitive three in one, switchable
Capacitive load
70uf, 140uf, 7.3uf can be switchable
Load output mode
Each power (continuous) / interval power can be switchable
Timer
0～9999 times, can be preset
Load power capacity
Single 24KVA
Upper limit of output current
82A, when it exceeds 82a, it will cut off automatically
General
Test Contents
Breaking Capacity Test of Electrical Coupler / Charging Interface
Electrical coupler / charging interface normal service life test
Detection Function
An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
Safety Protection
Ground protection, short circuit protection
