IEC62196-1 New Energy Vehicle BEV Plug Socket Breaking Capacity Test System
Products Description

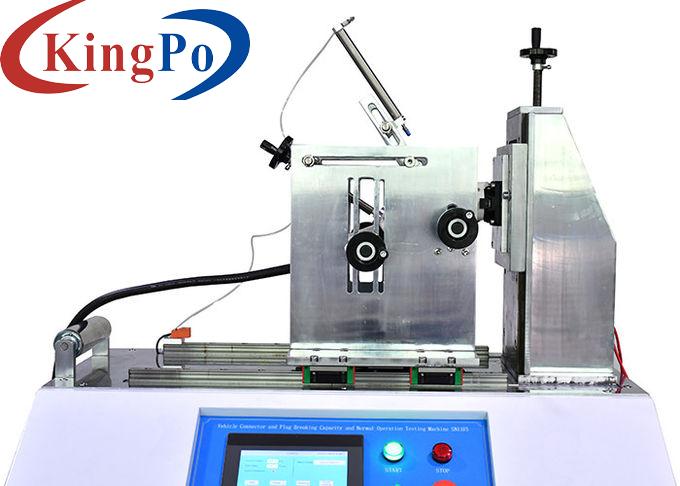

IEC62196-1 New Energy Vehicle BEV Plug Socket Breaking Capacity Test System
System Introduction:
This test equipment meets the requirements of IEC62196-1: 2020 clause 22 and clause 23, IEC60309-1: 2012 clause 20 and clause 21, etc.
It is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.
The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.
Technical Parameters:
Appliance coupler/charging interface breaking capacity test
Appliance coupler / charging interface normal operating life test
Mechanical Endurance Test Machine
Test Station
Single, can be customized
Electrical Control Method
PLC intelligent integrated control, with color humanized touch screen
Drive Mode
Servo motor drive
Sample Clamping Method
Mechanical clamping, the position of clamping point can be adjustable along the 3-axis fixture
Linear Stroke
0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)
Conduction Time
0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)
Speed of Insertion and Separation
0-0.85m/s can be preset,default(0.8±0.1)m/s
Test Cycles
0~999999 cycles, can be preset (A stroke is an insertion or a withdrawal of a plug or vehicle connector with its mating accessory. A cycle is composed of two strokes, one for insertion and one for withdrawal.)
Test Frequency
0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min)
Load Cabinet
Channel
1 Channel
Digital voltmeter
0～300V, accuracy ±0.5%
Digital ammeter
0～82A, accuracy ±0.5%
Digital display power meter
0～24KW, accuracy ±0.5%
Digital display power factor meter
0.2～0.999, accuracy ±0.5%
Load mode
Resistive, inductive, capacitive three in one, switchable
Capacitive load
70uf, 140uf, 7.3uf can be switchable
Load output mode
Each power (continuous) / interval power can be switchable
Timer
0～9999 times, can be preset
Load power capacity
Single 24KVA
Upper limit of output current
82A, when it exceeds 82a, it will cut off automatically
General
Test Contents
Detection Function
An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
Safety Protection
Ground protection, short circuit protection
