Insulation Surface Scratch Resistance Test Apparatus PLC Control
Price:Customized
StandardPackaging:Plywood
DeliveryPeriod:30Days
PaymentMethod:L/C,T/T,WesternUnion,MoneyGram
SupplyCapacity:20setspermonth
Products Description
Insulation Surface Scratch Resistance Test Apparatus PLC Control
Product overview:
Insulation Surface Abrasion Resistance Testing Equipment SN1106 A specimen, such as a solutely insulated part, coated printed board, or coated component, used to verify that an appliance for domestic and similar purposes is of sufficient strength to prevent penetration by a sharp instrument.
Conforms to IEC60335-1:2004 clause 21.2, IEC60950-1:2005 clause 2.10.8.4
Test Principle:

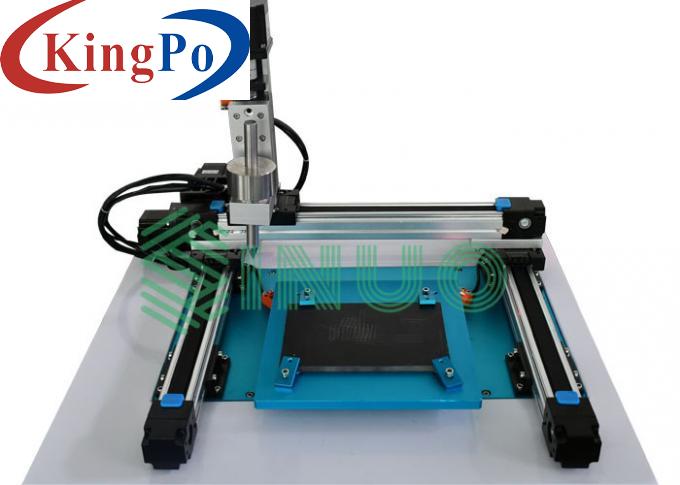

This device uses a hardened steel needle to make scratches. The end of the steel needle should be tapered with an apex angle of 40°, and its tip should be rounded and polished, with a rounding radius of 0.25mm ± 0.02mm. The scratch passes through the five pairs of conductive parts, including the middle interval, which should be the part with the largest potential gradient during the test. In the scratch test, when the needle is kept at 80-85° from the horizontal plane, scratch at a speed of 20mm/s±5mm/s. Appropriate load should be applied to the steel needle, so that the steel needle can exert a force of 10N±0.5N along its axis. The distance between the scratches should be at least 5mm, and the distance between the edges of the sample should be at least 5mm. This machine adopts PLC + touch screen control system, stepper motor drive, scratch distance, scratch number and scratch speed can be preset, 90° angle automatic rotation, easy to realize the scratch test in both vertical and horizontal directions
Technical Parameters:
wer supply | 220V / 50Hz (or match client's local power supply requirements) |
Control | PLC electrical control, 7-inch color touch-screen operation, stepper motor drive |
Station | Single |
Radius of Steel Pin | R0.25±0.02mm |
Point angle of the steel pin | 40 ° |
Scratch speed | 20 ± 5mm / s, can be preset |
Scratching pressure | 10N±0.5N,it can be equipped with the weight of 20N to reach the scratching pressure of 30N±0.5N |
Scratch spacing | 0-50mm, can be preset |
Scratch angle | 80-85 °, fixed by the fixture |
Sample Tray (Turntable) | can be 90 ° rotation, multiple mounting holes is suitable for different mounting specimens |
Standard applied | IEC60950 clause 2.10.8.4 and IEC60335-1 clause 21.2. |
Structure:
This abrasion resistance test equipment adopts aluminum alloy frame, stainless steel seal plate, sandblasted aluminum base plate, forming ball screw and guide rail equipment, hardened steel pin, rotating sample tray, beautiful designed, compact and durable.
