Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs
Products Description
IEC 600950 Integrated 1.2 /50 µs and 10/700 μs Impulse Voltage Test Generator
Product information:
Standard: Conforms to IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC 60950-1:2013 clause 2.10.3.9, reference 2 & reference 1 of table N.1, IEC60335-1 clause 14, and etc.
Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.
Test sample: Household appliance, Audio, video and similar electronic apparatus.
Feature: This impulse voltage tester is a standard lightning wave test device with two kinds of waveforms 1.2/50µs and 10 µs/70µs. The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical Parameters:
Impulse wavefront time: 1.2 µs ± 30 %;
Half value of after wave time: 50 µs ± 20 %
Impulse wavefront time: 10 µs ± 30 %;
0-12500V
Low: 300 V~ 2,500V; High: 2,500 V~ 12,500V
Equipment features:
All parameters can be set on the touch screen. After the sample is connected, click "Start Test" to start the test.
Test Interface
Model
SN1104-3
DC high voltage
Max. 12.5kV
6kV
Impulse voltage wave
Half value of after wave time: 700 µs ± 20 %
Instrument internal resistance
12Ω ± 10%
40Ω ± 10%
Internal resistance converter box
500Ω - 10% optional
Peak voltage: 300 V~ 12,500V
0~6kV, ± 5%
Impact interval time
5 ~ 99s
30~999s
Impact cycles
1 ~ 9999
Polarity
Positive and negative
Working power source
Meets the requirements of client's local power supply
Dimension
630mm×600mm×380mm
Weight
30 KG

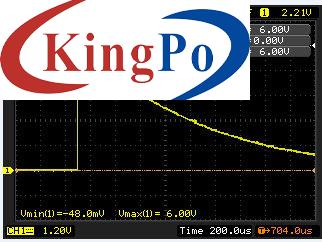

The test interface as shown in the figure below, and the high-voltage warning light flashes intermittently, indicating that the test is in progress. After the test is completed, it will stop automatically.
