IPX9K High Pressure And Temperature Water Jetting Test System IEC 60529 IP Code Test

Product Information:

Standard:

1. DIN 40050-9:1993 IP code for enclosure protection level

2. ISO 20653:2013 Road vehicles - Protection classes (IP codes) - Protection of electrical equipment against outside objects, water and contact

3. GB/T 30038-2013 Road vehicles Protection levels of electrical and electronic equipment (IP code)

4. IEC 60529: 2013 Protection Classification Level (IP) Code for Electrical Enclosures

5. GB 4208-2017 Shell protection level

Function:

The main purpose of this equipment is to conduct IPX9K waterproof testing on the protection of automobile electrical components, lamps, and electronic and electrical product casings. It is a waterproof testing equipment designed to simulate the natural environment or artificial high-pressure car washing. The main components of the equipment should include: high-pressure and high-temperature plunger water pump, three-phase asynchronous motor, and the inlet and outlet pipes of the water pump should be connected with high-pressure hoses. The equipment mainly consists of a control cabinet, water supply system, high-pressure nozzle, nozzle electric adjustment bracket, and sample turntable.

Technical parameters:

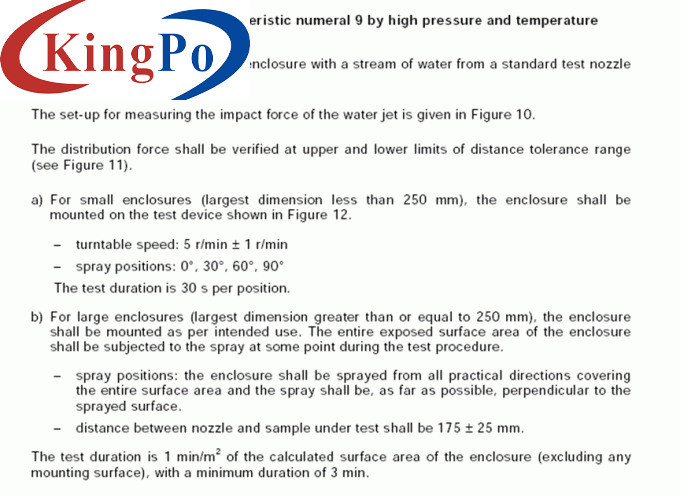

1. The test meets the needs of small shell (samples with a maximum size not exceeding 250 mm) and large shell (samples with a maximum size greater than or equal to 250 mm). The maximum sample size tested is: Ø1150mmX750mm

2. Test water temperature: 80±5 ℃ controllable

3. Nozzle specifications: customized according to standard graphics, meeting standard IPX9K requirements

4. Nozzle angle: small shell (0°, 30°, 60°, 90°), large shell vertical surface 90°

5. Water spray pressure: 8MPa-10MPa (adjustable)

6. Water spray flow: 14L/min-16L/min (adjustable)

7. Water spray distance: 100~250mm adjustable

8. Test product power-on work: provide sample power interface

9. Water pump: High-pressure and high-temperature water pump imported from Italy. The water-type shell uses 4 high-temperature and high-pressure piston valves to control the work of each nozzle

10. Used for large product nozzle brackets: the bottom can be electrically moved forward and backward, the up and down height can be electrically moved, and the 90-degree downward nozzle can be electrically moved left and right.

11. Sensor: electronic pressure sensor outputs pressure value, turbine flow meter outputs flow value

12. Control: Automatic control of time, pressure, and flow. It can control the working time, flow, and pressure of each nozzle. The speed of the booster pump can be controlled by changing the frequency of the frequency converter to achieve the set flow and pressure. All data is converted through intelligent instruments display on the control panel

13. Display: 7-inch Weinview color touch screen

14. Interface language: English, touch screen input

15. Operation mode: 0°, 30°, 60°, 90° cycle operation for small products, 90° vertical movement of the nozzle for large products, or a combination of the two modes

16. Display function: dynamically refresh sampling data and setting parameters in real time. Can display pressure, flow, temperature, test time, etc.

17. Protection functions: leakage protection, overload protection, short circuit protection, personnel operation safety protection

18. Water tank capacity: ≥ 200L

19. Turntable: Bottom diameter 800mm, upper turntable 350 mm, bottom turntable load-bearing 150KG, upper turntable load-bearing 25KG, poles are removable, small products can be placed on the upper turntable, large products can be placed directly on the lower turntable after removing the upper turntable, rotation speed: 5r/min± 1r/min

20. Equipment power supply: AC380V, 50Hz, 30KW.
