Leakage Current Tester Electrical Appliance Safety Testing Equipment
Price:Negotiable
StandardPackaging:CartonBox
DeliveryPeriod:20Days
PaymentMethod:L/C,T/T,WesternUnion,MoneyGram
SupplyCapacity:50setspermonth
Products Description
Leakage Current Tester Electrical Appliance Safety Testing Equipment
Product information:
■ Meet the electrical safety general test requirements of IEC60335.1, UL60335.1, GB4706.1, etc.
■Built-in common human body simulation impedances, different simulation impedance standard cards can be selected according to different standards, default come with network as per IEC 60335-1, other networks are optional.
■ Upper limit preset, automatic reminder of alarm message, intelligent memory analysis function, system self-check function, automatic protection function.
■ 16*2LCD display
■The instrument has a software calibration function for simplify parameter calibration.
Technical Parameters:
| Model | SN9620X | |
| Input voltage | 220Vac±10% | |
| Input power | 50/60Hz±5% | |
| Fuse | Fuse 0.5A/250V | |
| Leakage current | ||
| Test input voltage | 30-300V AC Single phase | |
| Test input current | 20A AC MAX | |
| Voltage display range | 30-300V AC | |
| Voltage display resolution | 1V | |
| Voltage display accuracy | ± (2% setting+3V) | |
| Leakage current range | 50-6000uA | |
| Leakage current resolution | 1uA | |
| Leakage current accuracy | ± (2% reading+30uA) | |
| Built-in human network | Default as per IEC 60335-1, other networks are optional | |
| Test time range | 1.0-2.0-999.9s , resolution 0.1s, set 1s only to test the leakage of firewire | |
| Function parameters | ||
| Display | 16*2 blue screen character LCD display | |
| Communication Interface | RS232(optional) | |
| Calibration method | Software calibration | |
| Working environment | 0-40℃, 20-80%RH | |
| Dimensions & weight | 280mm(W)×89mm(H)×370mm(D), approx. 15kgs | |
| Accessories | Power cord × 1, test clip × 2, fuse× 1 | |
Calibration required instrument:
1. 50-300V adjustable test power source
2. 50K block resistor
3. Digital multi-meter with a 20mA AC.
Calibration preparation:
Set the upper limit current alarm value of the tester SN9620X to the full scale, and the lower limit to 0. The current calibration within the measuring range can be performed and avoid the over current test stop.

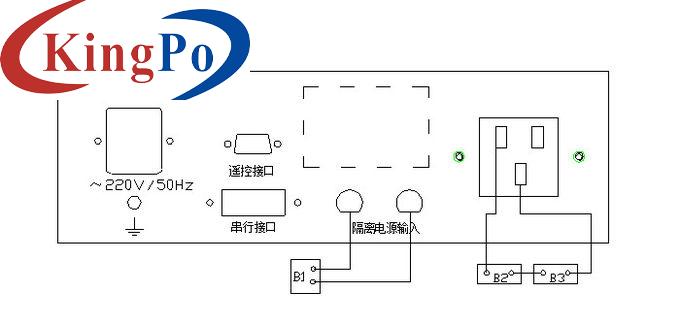

Calibration connection:
