Mechanical Antenna Coax Sockets IEC 60065 Harden Steel Test Plug
Products Description
IEC 60065 Harden Steel Test Plug for Mechanical Tests on Antenna Coax Sockets
Product information:
The test plug for mechanical tests on antenna coax sockets conforms to IEC60065:2014 clause 12.5 Figure 9.
It is used to verify the antenna coaxial sockets mounted on the apparatus and incorporating parts or components which isolate HAZARDOUS LIVE parts from ACCESSIBLE parts shall be constructed so as to withstand such mechanical stresses as may be expected in the intended use.
Technical Parameters:

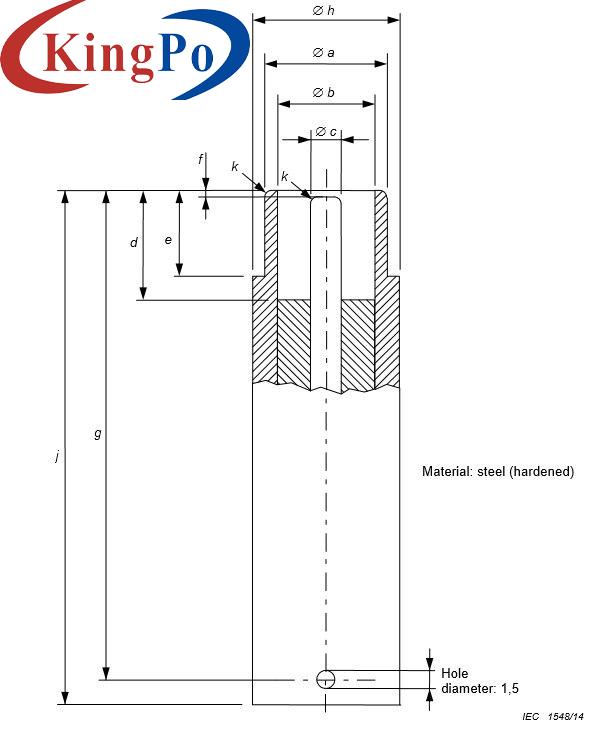

The test plug is made entirely of hardened steel (stainless steel). All parts are machined with precision. The dimensions are according to IEC60065:2014 Figure 9, shown as following:
Operation steps:
Please refer to the relevant standards.
Take IEC60065:2014 clause 12.5 as an example:
Endurance test
The test plug is inserted and withdrawn from the socket 100 times. Care is to be taken not to damage the socket intentionally during insertion and withdrawal of the test plug.
a
9.576 0 -0.1
b
8.05 Minimum
c
2.438 0 -0.1
d
9.1 Minimum
e
7.112 Minimum
f
0.8±0.4
g
40±0.4
h
12±0.4
j
43±0.4
k
R0.3
Hole diameter
Ф1.5
