Mexican Brass And Copper Clamping Units For Temperature Rise Test IEC 60884-1 Figure 44
MOQ:1SetPrice:NegotiableStandardPackaging:StandardExportingPlywoodCaseDeliveryPeriod:30daysPaymentMethod:L/C,T/TSupplyCapacity:10Sets/Month
Products Description
Place of Origin：China
Brand Name：KingPo
Certification：Calibration Certificate(cost additional )
Model Number：KP2119-3
Standard Clause：IEC60884 Clause 19
Standard Figure：Figure 44
Test Content：Temperature Rising Test
Unit Material：Brass With At Least 52 % Of Copper
Minimum Order Quantity：1 Set
Price：Negotiable
Packaging Details：Standard Exporting Plywood Case
Delivery Time：30 days
Payment Terms：L/C, T/T
Supply Ability：10 Sets / Month
Highlight：switch endurance tester, switch life testing machine
IEC 60884-1 Clause 19 Figure 44 Clamping Units for Temperature Rise Test
Product information:
The temperature rise plugs confirm to requirements of IEC60884 standard 19 Chapter Figure 44.
Material: brass with at least 52 % of copper.
Tolenrance: ±0,2mm unless other wise stated.

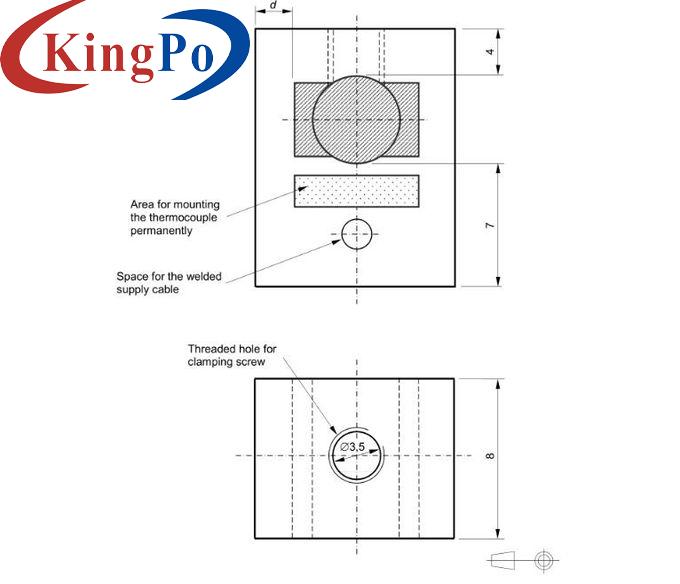

REMARKS:
-The dimension(s) for the shaded area is (are) the maximum plug pin dimension (s) +0,8 mm.
-1,5≤d≤3.
-The thermocouple should be placed within the shaded area but not directly under the clamping screw.
Usage:
Please refer to relative standard requirements.
